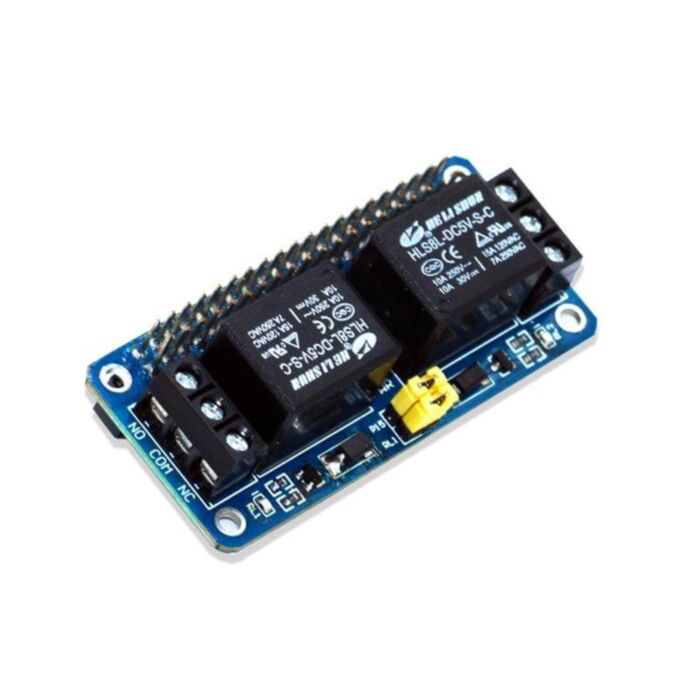

Zero Relay: 2-Channel 5V Relay Board for Pi Zero

SKU: CE08530 Brand: The Pi Hut Guides (1)
The Zero Relay provides a convenient solution for controlling high current/voltage devices with your Raspberry Pi Zero! It's a great option for...
$22.45 AUD, inc GST
$20.41 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 15th of Nov

Quantity Discounts:

  • 10-25 $19.59 (exc GST)
  • 25+ $18.98 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The Zero Relay provides a convenient solution for controlling high current/voltage devices with your Raspberry Pi Zero!

It's a great option for controlling devices that are too high-voltage/high-current to be controlled by the Raspberry Pi GPIO pins. The board has a 10A 30VDC output rating and is designed for triggering at high voltage levels.

Relay channels 1 and 2 are connected with pin numbers 15 and 29 of the Raspberry Pi GPIO respectively. The channels are configurable and can be connected with other pins as well with the help of headers.

Features

  • 2 High-quality 5V Relays (loads up to 10A @ 30VDC)
  • Control 2 appliances at once
  • 40-Pin Stacking Header
  • LEDs for relay status
  • Mounting holes provided
  • Make your home loT enabled
  • Compatible with all 40-pin models of the Raspberry Pi

Package contents

  • 1 x 2-Channel 5V Relay Board
  • 2 x 16mm nylon standoff
  • 2 x Nylon mounting screws
  • 2 x Nylon nuts

Resources

Specification

  • Channels: 2
  • Voltage: 5V
  • DC Control Voltage: 30V @10A
  • Dimensions (LxW): 65mm x 30mm

Note: Raspberry Pi not included
