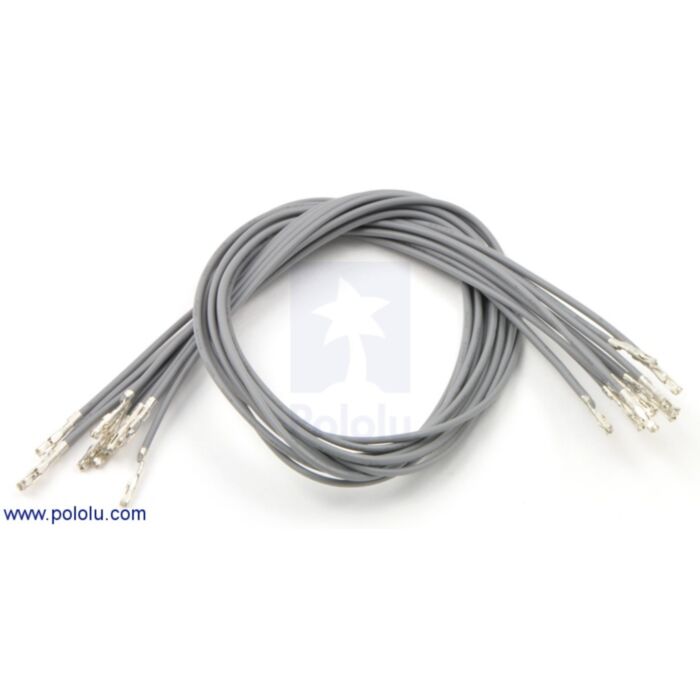

Wires with Pre-crimped Terminals 10-Pack F-F 12" Gray

Example of a custom cable made with wires with pre-crimped terminals and crimp connector housings.

These wires with pre-crimped terminals are equivalent to Pololu's premium jumper wires without the 1×1 crimp connector housings on the ends. By combining these wires with Pololu's crimp connector housings, you can quickly and easily create custom cables with 0.1" (2.54 mm) connectors that mate with various 0.1"-spaced connectors, including male and female headers and solderless breadboards. Just pick the housing for the correct number of pins, pick the colors and genders for your wires, and snap them into the housings (note: it’s not easy to get the wires back out, so plan carefully!). No soldering is required!

You can easily make cable harnesses or assemblies that branch from one connector on one side to multiple connectors on the other (an example of this is shown in the picture to the right); you can also cut off one pre-crimped end and solder the wires directly to components to make swapping connections easy, as shown in the motor picture below.

The wires are available in eight lengths—1" (2.5 cm), 2" (5 cm), 3" (7.5 cm), 6" (15 cm), 12" (30 cm), 24" (60 cm), 36" (90 cm), and 60" (150 cm)—and up to ten colors:

0.1" connector custom motor cable.

• black
• brown
• red
• orange
• yellow
• green
• blue
• purple
• gray
• white

These are the same colors as those used on resistor color codes and rainbow ribbon cable. The available color options and pack sizes depend on the wire length, as does the wire gauge:

Note that the single-color packs of the 1", 2", and 3" wires are only available in six colors (black, red, yellow, green, blue, and white) while the single-color packs for the 6", 12", and 24" wire lengths are available in all ten colors. The single-color packs for the 36" and 60" lengths were originally available in all ten colors, but Pololu are transitioning to just offering them in six colors (black, red, yellow, green, blue, and white) once the remaining stock of the brown, orange, purple, and gray packs is gone. The multi-color packs of the 1" and 2" wires have ten each of six colors (black, red, yellow, green, blue, and white); the multi-color packs for all of the other wire lengths, including 3", 36", and 60", have various quantities of all ten colors.

These wires can be purchased with male terminals on both ends, female terminals on both ends, or one male and one female terminals. These crimped terminals are designed for use with 0.1" (2.54 mm) male headers and female headers, solderless breadboards, and prototyping PCBs. Note that Pololu also sell the male and female crimp pins by themselves if you want to crimp your own wires. Close-up pictures of the male and female terminations are shown below:

You can use the following selection boxes to get to the specific wires you are looking for:

Alternatives available with variations in these parameter(s):gender length colorSelect variant…

For versions of these wires with 1×1 housings already installed, see Pololu's premium jumper wires, or use the following selection boxes:

Alternatives available with variations in these parameter(s):gender length colorSelect variant…

The following video talks about some of Pololu's various wire and cable options and includes a short demonstration of how to use these pre-crimped wires with Pololu's crimp connector housings:

One of Pololu's customers has made a very nice video that talks about how to make custom cables with these pre-crimped wires and with self-crimped wires made with Pololu's crimping tool. The section on using pre-crimped wires and crimp connector housings starts at around 2:00.

People often buy this product together with:

Wires with Pre-Crimped Terminals 10-Pack F-F 6" Orange

Wires with Pre-Crimped Terminals 10-Pack F-F 6" Green

Wires with Pre-Crimped Terminals 10-Pack F-F 12" Black

Dimensions

General specifications

Recommended links

• Short video tutorial on how to make custom cables (by customer Derek Molloy)

  This video, created by customer Derek Molloy, discusses various options for making custom cables with Pololu's crimp connector housings, such as by using Pololu's pre-crimped wires or crimping your own with Pololu's wider crimping tool, though the same technique works with Pololu's narrower crimping tool as well. The section on using the crimping tool starts at around 4:15.
