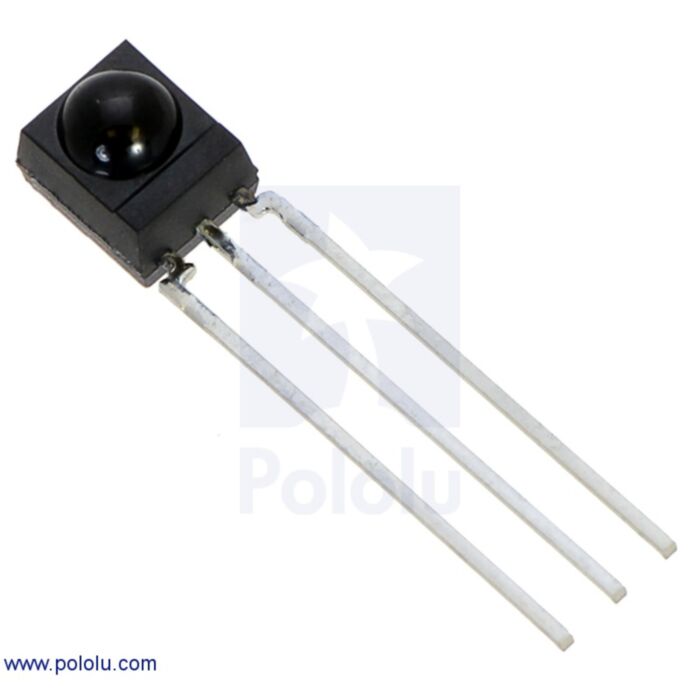

Vishay TSOP34156 IR Detector Module, 56kHz

SKU: POLOLU-837 Brand: Pololu
The Vishay TSOP34156 is a general-purpose modulated IR receiver for IR-based remote-control projects. It features a wide operating voltage range and allows for relatively high data rates; this particular unit is tuned for a 56 kHz carrier frequency. This is the IR receiver used in the Pololu IR Beacon.
$5.15 AUD, inc GST
$4.68 AUD, exc GST

Available with a lead time
Expect dispatch between Mar 05 and Mar 10

Quantity Discounts:

  • 10-25 $4.49 (exc GST)
  • 25+ $4.35 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This IR demodulator from Vishay is a general-purpose receiver for IR-based remote-control projects. It is optimized for data rates up to 4000 bits/s and bursts as short as six cycles, and the detector’s epoxy package serves as an infrared filter that helps eliminate noise from visible light sources. The operating voltage range is broad enough for 5 V and 3.3 V logic, and unlike some receiver modules, the TSOP34156 allows for continuous reception. The module’s output signal can be directly connected to a microcontroller; no additional external components are required.

For a similar IR detector that is tuned for a 38 kHz carrier frequency, see the Vishay TSOP38438.

Modulated IR detector comparison

Part TSOP34156 TSOP38438 TSSP58P38 TSSP58038
Intended function IR remote control brightness/proximity sensing predictable modulated IR presence sensing
Modulation frequency 56 kHz 38 kHz 38 kHz 38 kHz
Gain (sensitivity) automatic but inaccessible automatic, predictable fixed high gain
Output binary (data) analog (pulse width) binary (on/off)
Update rate a few kHz a few Hz a few kHz

Specifications

  • Operating Voltage: 2.7 V to 5.5 V
  • Carrier Frequency: 56 kHz
  • Max data rate: 4000 bps
  • Package: Through-hole with 0.1" lead spacing

See the resources tab for the TSOP341 datasheet.
