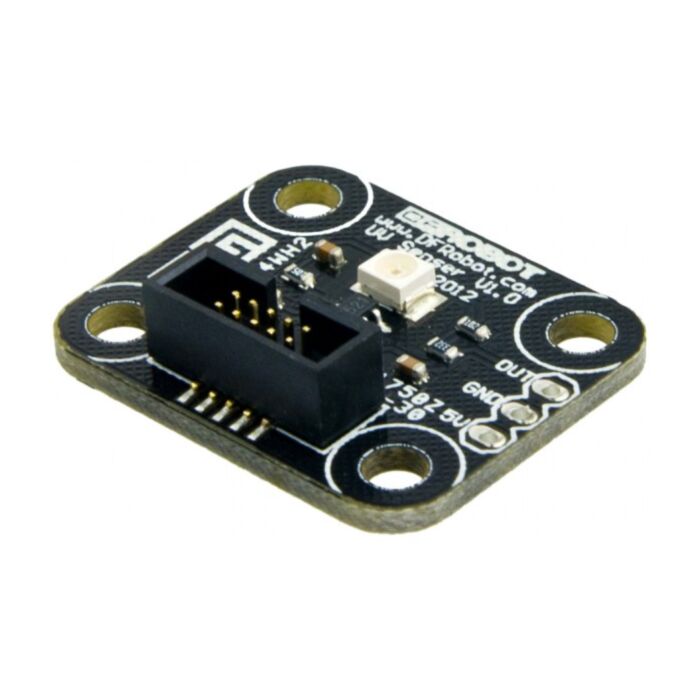

UV Sensor

SKU: TOY0044

$12.48 AUD, inc GST
$11.35 AUD, exc GST

More Views

UV Sensor

SKU: TOY0044

$12.48 AUD, inc GST
$11.35 AUD, exc GST

Retired Product

Replaced by: SEN0162

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This product has been replaced by: SEN0162

Introduction

This UV Sensor(Gadgeteer compatible)used GUVA-S12SD chip is suitable for detecting the UV raditation in sunlight.It can be used in UV Index Monitoring,DIY project,UV-A Lamp Monitoring,Plants growing Environmental monitoring...etc.

It can detect the UV wavelength of 200-370nm ,fast response,linear analog voltage signal output.Small size,easy for installing.With the diagram of the world health organization uv index grading standards,you can know the UV index by the sensor directly.

This sensor isable to be powered by 5V or 3.3V which make it compatile with both Gadgeteer, Arduino DUE 3.3V system and standard Arduino  UNO/Mega 5V system.

Applications
  • UV-A Lamp Monitoring
  • UV Index Monitoring
  • DIY UV electronic project,etc...

Specification
  • Input voltage:5V(via Pin)  3.3V(via IDC10)
  • Output voltage:DC 0-1V(Corresponding 0-10 UV index)
  • Working current:0.06mA(0.1mA max)
  • UV wavelength detect:200-370nm
  • Test accuracy:±1UV INDEX
  • Response time:<0.5s
  • Operating temperature:-20℃-85℃
  • Interface Type:Anolog
  • .NET gadgeteer connector (IDC10)Socket
  • Size:27 x 22mm

Shipping List
  • UV Sensor(.Net Gadgeteer Compatible)     (1 unit)
  • 3pin Header-Straight                     (1 unit)
  • Cable                                    (1 unit)
