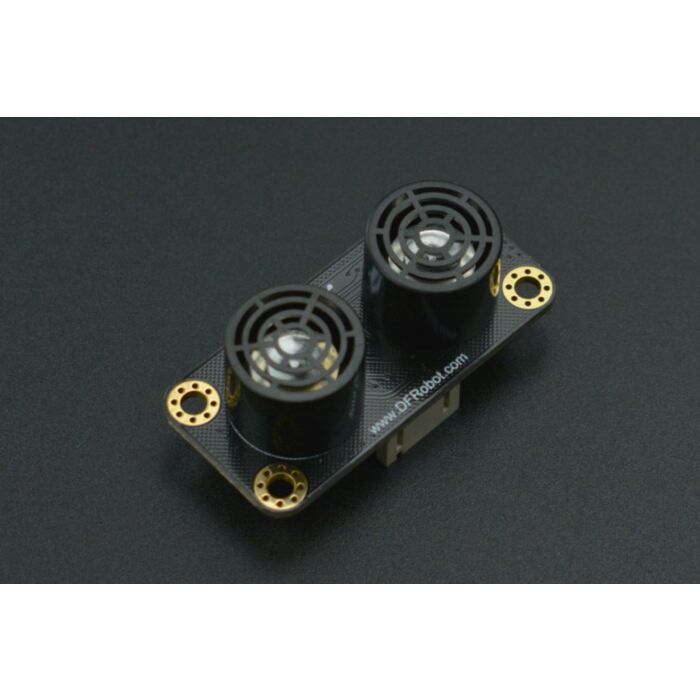

URM09 Ultrasonic Sensor (Gravity I²C)

SKU: SEN0304 Brand: DFRobot

DFRobot URM09 is an ultrasonic sensor specifically designed for fast ranging and obstacle avoidance application. Its measuring frequency can reach up to 50Hz. The...

$21.60 AUD, inc GST

$19.64 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 13 and Jan 16

Quantity Discounts:

10-25 $19.05 (exc GST)
25+ $18.65 (exc GST)

DFRobot URM09 is an ultrasonic sensor specifically designed for fast ranging and obstacle avoidance application. Its measuring frequency can reach up to 50Hz. The sensor adopts built-in temperature compensation and I2C communication. There are three measurement ranges designed for programs to select: 150cm, 300cm and 500cm. Please note that shorter range will provide shorter ranging cycle and lower sensitivity. You may need to set it according to your actual use. Besides, the sensor is equipped with on-board LDO, which is able to avoid performance attenuation within power supply range.

Specification

Supply Voltage: 3.3~5.5V DC
Operating Current: 20mA
Operating Temperature Range: -10°C ~ +70°C
Measurement Range: 2cm~500cm (can be set)
Resolution: 1cm
Accuracy: 1%
Frequency: 50Hz Max
Dimension: 47mm × 22 mm/1.85”× 0.87”

Documents

Product wiki

Parts List

URM09 Ultrasonic Sensor(Gravity I²C)(V1.0) x1
PH2.0-4P Connector x1
