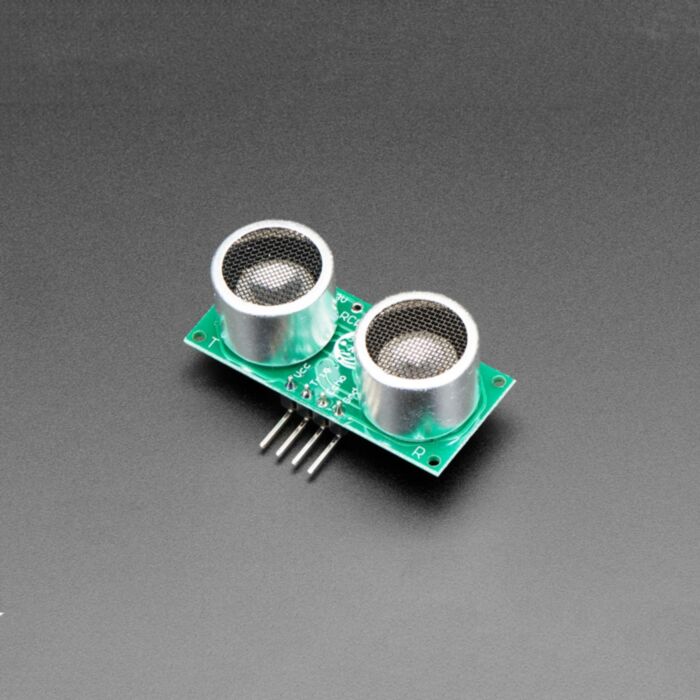

Ultrasonic Distance Sensor - 3V or 5V - HC-SR04 compatible - RCWL-1601

SKU: ADA4007 Brand: Adafruit

Retired Product

Replaced by: CE09432

This product has been replaced by: CE09432
This product is no longer available. This page is only for reference.

If you're like me, you've dreamed of being a dolphin - smoothly gliding through the water. Using your echo-location abilities to detect tasty fish treats. Until genetic modifications catches up with Adafruit's desires, we'll just have to make do with these handy 3V Ultrasonic Sonar Distance Sensor and a pair of flippers. These ubiquitous sensors are really common in robotics projects, but they can also be used for automation, interactive art and motion sensing. They work at about 2cm to 450cm away, but we think 10cm-250cm will get you the best results.

These sensors are fast, fairly easy to use, and low cost. Unlike the more common HC-SR04 series, this model can be powered by 3V or 5V and the logic level will be the same. This makes this model great for use with just about any microcontroller or microcomputer. And, its HC-SR04 compatible so just drop it in and it works the same!

You can use this sensor with Arduino, CircuitPython (for microcontrollers or Raspberry Pi) or MakeCode

We carry a large variety of distance sensors here if this fellow isn't what you're looking for.

Technical Details

Voltage: 3V - 5.5V
Current: 2.2mA
Measuring Range: 2cm - 450cm
Working Temperature: 0ºC to 70ºC
Compatible with HC-SR04 Ultrasonic Sonar Distance Sensor

Product Weight: 6.0g / 0.2oz

Diagram
