UCTRONICS Pi Rack Basic - 19" 1U 5x Pi 5 with M.2 NVMe Base

SKU: AC-RM0015 Brand: UCTRONICS

Under-board M.2 NVMe bases bring PCIe Gen2/Gen3 speeds to up to five single-board computers in a 1U rack, preserving GPIO access and LED drive activity.

$184.95 AUD, inc GST
$168.14 AUD, exc GST

Available with a lead time
Expect dispatch between Feb 03 and Feb 06

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

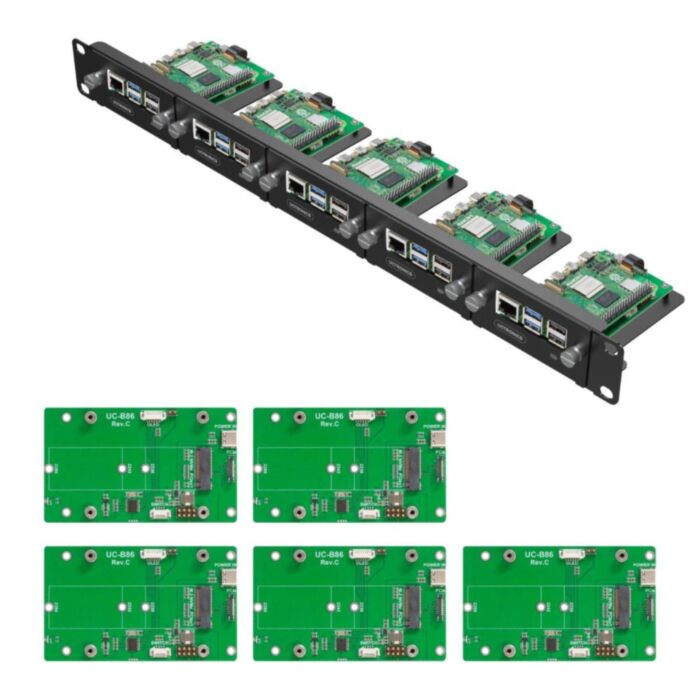

Scale your Raspberry Pi 5 storage and compute in a single 1U. This rackmount solution fits up to five Raspberry Pi 5 boards with under-board NVMe bases, keeps the GPIO header clear for add-ons, and shows per-drive activity with crisp LEDs.

Built for compact NAS builds, Pi-hole, Home Assistant, and lightweight Kubernetes clusters, it accepts M.2 NVMe SSDs in 2230, 2242, or 2280 sizes with PCIe Gen2 or Gen3 compatibility. Power each node via the Pi’s USB-C or from the NVMe base to suit your wiring.

Technical Specifications

Form factor19 inch 1U rackmount
CapacityHolds up to 5 Raspberry Pi 5 and 5 M.2 NVMe SSDs
Drive supportM.2 NVMe 2230, 2242, 2280 (NVMe only)
InterfacePCIe NVMe, Gen2 and Gen3 compatible
NVMe base placementFits beneath each Pi to keep GPIO accessible for HATs and active coolers
NVMe base footprintApprox 100 x 60 mm
IndicatorsPer-slot LED for real-time M.2 disk activity
Power optionsVia Raspberry Pi USB-C or via the NVMe base
Compatibility notesNot compatible with M.2 SATA devices or M.2 PCIe AHCI drives
Boot noteSome users report certain WD NVMe models with Phison controllers may not boot on Raspberry Pi
Inclusions noteRaspberry Pi boards and SSDs not included

Additional Resources

This product is listed in:

Raspberry Pi>Rack and Cluster>Rack Mount
