Turtle - 2WD Mobile Platform

SKU: ROB0005 Brand: DFRobot

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

Introduction

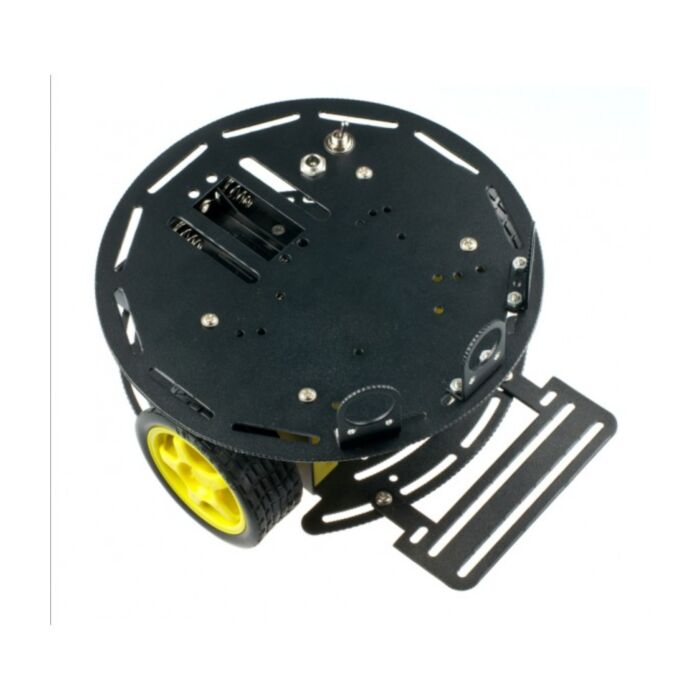

This 2WD Mobile Platform for Arduino is a small, low-cost mobile platform for use with a standard Arduino microcontroller. The robot comes as a kit which includes two drive motors, wheels (and rear caster ball), frame and all mounting hardware.

The Arduino 2WD four-wheel-drive robot is based on the DFRobot and widely used as self-developed control panel for Arduino platform. The platform 51 can be used not only to control STC controller, AVR controller but also for the world wide promotion for the use of Arduino controller. The Arduino platform has world's large number of users and abundant examples are available of procedures used. The two differential drives, the use of near zero turning radius, high-strength aluminum alloy body materials, plus high-quality high-speed motor and a flexible rubber wheel makes it suitable for indoor flat road surface.

To make this lovely robot run, you probably need a motor controller and MCU. The DFRobot romeo all-in-one board is an ideal candidate for this.

Specification

2WD Arduino mobile robot development platform
Low-cost Arduino microcontroller mobile platform
Two differential drive
Caster ball included
Complete chassis with mounting hardware
Dimensions: 170mm diameter base
Weight: 445g

Motor Specification

Gear Ratio 1:120
No-load speed(3V):100RPM
No-load speed(6V):200RPM
No-load current(3V):60mA
No-load current(6V):71mA
Stall current(3V):260mA
Stall current(6V):470mA
Torgue (3V): 1.2Kgcm
Torque (6V): 1.92Kgcm
Size: 55mm x 48.3mm x 23mm
Weight:45g

Documents

Shipping List

Wheels (FIT0005) 2 Units
Micro DC Geared Motor (FIT0016) 2 Units
Chassis 1 set

Optional Parts

Encoders (SEN0038)
Romeo Controller (ROB0004)
