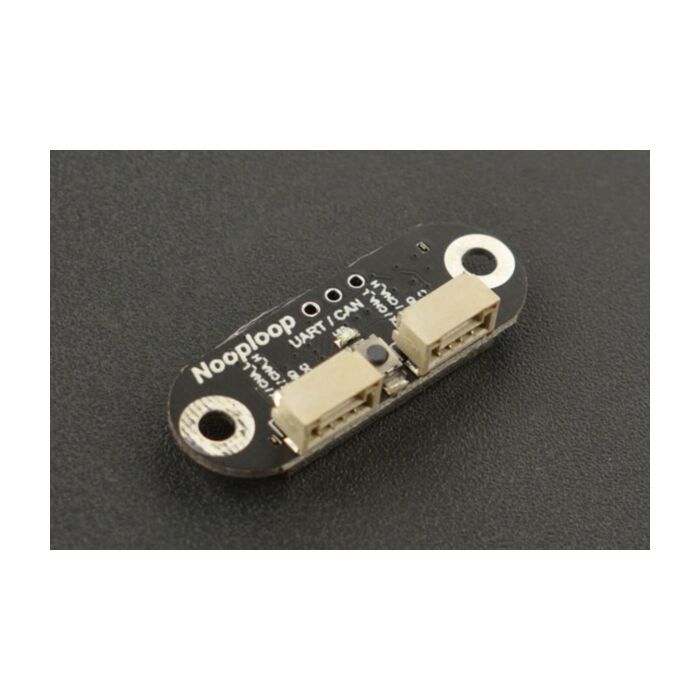

TOF Sense Laser Range Sensor (5m)

SKU: SEN0337 Brand: DFRobot

TOF Sense is a TOF-based (Time of Flight) laser ranging sensor that offers 1cm-5m detection range, 1mm resolution, ± 1.5cm error, and 10Hz data update frequency...

$47.10 AUD, inc GST

$42.82 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 24 and Apr 28

Quantity Discounts:

10+ $41.11 (exc GST)
25+ $39.82 (exc GST)

TOF Sense is a TOF-based (Time of Flight) laser ranging sensor that offers 1cm-5m detection range, 1mm resolution, ± 1.5cm error, and 10Hz data update frequency. The sensor supports 15 ° ~ 27 ° adjustable FOV, UART and CAN communication (selected by setting). Besides, it allows users to actively query the output data, making data acquisition much easier. With a size of 35.58 * 12 * 8.05mm, this small and compact sensor can be used as a distance-measuring tool for distance detection, a robot to avoid obstacles, and can also be used in drones areas such as altitude setting and route planning.

Detection Diagram

The difference from other ranging sensors is that this sensor reserves two identical communication interfaces. When setting IDs for each sensor and connecting multiple sensors in series, the ranging information of all sensors can be read by just one communication interface.

Note: The UART interface supports a maximum of 8 cascades, and the CAN interface supports 7 cascades at most. Under cascade distance-measuring, it is suitable for UART query, CAN query, and CAN active output.

Cascade Distance-measuring Diagram

Dimension

Specification

Operating Voltage: 5V
Operating Current: 0.06A
Communication Interface: UART, CAN

UART (two interfaces can be used as UART simultaneously, 3.3V TTL, 921600 default band rate)
CAN (two interfaces can be used as CAN simultaneously, 1Mbps default band rate)

Maximum Cascading Number: 8 for UART, 7 for CAN
Blind Zone: 1cm
Typical Detection Range:

  Short-range: 0.012m~2.16m
  Mid-range: 0.012m~3.60m
  Long-range: 0.01m~5.00m

Typical Detection Accuracy:

  Short-range: accuracy±1.0cm, standard deviation<0.3cm
  Mid-range: accuracy±1.0cm, standard deviation<1.5cm
  Long-range: accuracy±1.5cm, standard deviation<0.5cm@[0.01,3]m range, standard deviation<8cm@[3,5]m range

Wavelength: 940nm (compliant Class 1 Standard)
FOV: 15°~27° (adjustable)
Power Supply: 3.7V~5.2V (the power supplies of all communication interfaces are electrically connected, so any interface can be power supply interface.)
Power Consumption: 290mW (UART active output, long-range detection, 5.0 power supply)
Weight: 2.7g
Dimension: 35.58 * 12 * 8.05mm
Temperature Range: -20°C ~ 85°C

Documents

Product wiki

Parts List

TOF Sense Laser Range Sensor(5m) x1

Connector x1
