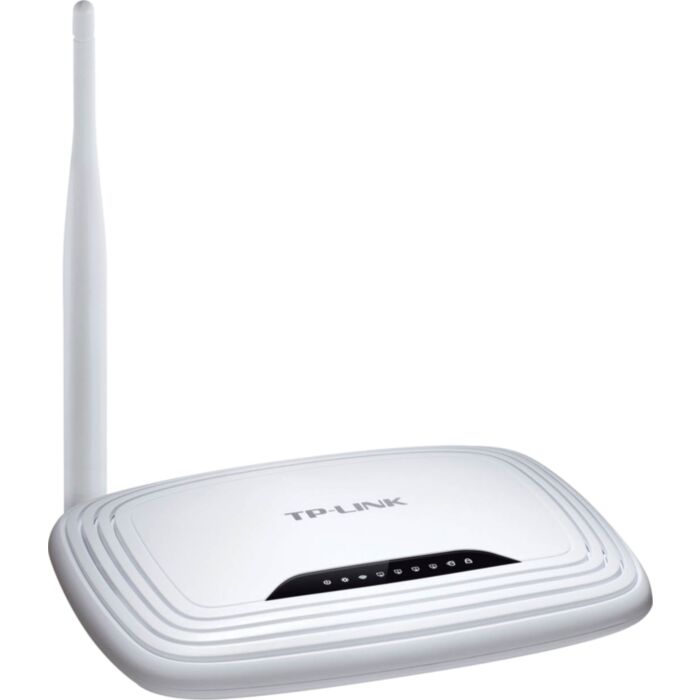

TL-WR743ND 150Mbps Wireless AP/Client Router

SKU: AD4245A

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

TP-LINK’s TL-WR743ND Wireless AP/Client Router is specially designed for Wireless ISP users, enabling wireless access to the Internet in areas with no wired ISP infrastructure (such as cable or xDSL). With multiple integrated functions, TL-WR743ND can also serve as a normal wireless router or an access point. What’s more, it supports Passive Power over Ethernet, convenient for deployment in areas without power outlets, such as a backyard or outdoor environments.
Wireless ISP function provides the wireless Internet access in areas with on wired ISP infrastructure. Easily setup a WPA encrypted secure connection at a push of the WPS button. WAN Port supports up to 30 meters (100 feet) Passive Power over Ethernet. WDS wireless bridge provides seamless bridging to expand your wireless network.

Features

150Mbps wireless data transfer ideal for lag-free video streaming, online gaming and Internet calling
Client Router Mode supports WISP Internet connection, allowing users to share an Internet connection wirelessly or via cables
WAN Port supports up to 30 meters (100 feet) Passive Power over Ethernet
Easily setup a WPA encrypted secure connection at a push of the WPS button
WDS wireless bridge provides seamless bridging to expand the wireless network
IP QoS ensures smooth video streaming or lag-free online gaming experience
Built-in NAT and DHCP servers support static IP address distribution
Supports PPPOE, Dynamic IP, Static IP, L2TP, PPTP, BigPond Cable Internet access
Supports Virtual Server, DMZ, UPnP, DDNS, Static Routing, VPN Pass-through
Supports WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) authentication
Supports configuration backup/restore and firmware upgrades
Fully compatible with all IEEE 802.11 b/g/n products
Detachable antenna allows for stronger antenna upgrades (RP-SMA connector)
Built-in Quick Setup Wizard for easy network settings and security configurations

Specifications

WAN Type: Dynamic IP/Static IP/PPPoE/PPTP/L2TP/BigPond
DHCP: Server, Client, DHCP Client List, Address Reservation
Quality of Service: WMM, Bandwidth Control
Port Forwarding: Virtual Server,Port Triggering, UPnP, DMZ
Dynamic DNS: DynDns, Comexe, NO-IP
VPN Pass-Through: PPTP, L2TP, IPSec (ESP Head)
Access Control: Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security: DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding
Management: Access Control
Local Management
Remote ManagementInterface: 4 10/100Mbps LAN Ports, 1 10/100Mbps WAN Port
Button: WPS Button, Reset Button, Power On/Off Button
External Power Supply: 9VDC / 0.6A
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antenna: 5dBi Detachable Omni Directional (RP-SMA)
Dimensions: 174W x 118D x 33H mm
