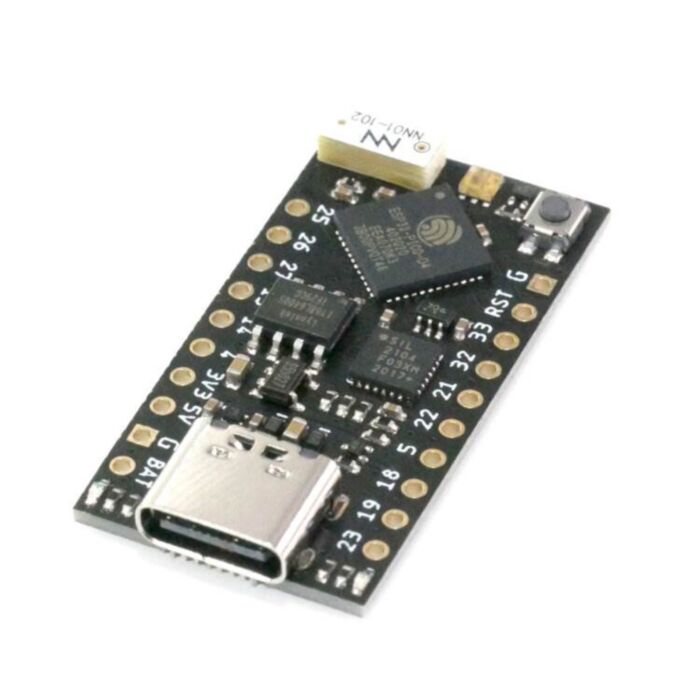

TinyPICO V3 USB-C

SKU: CE08629 Brand: Unexpected Maker

Your very own TinyPICO V3 with MicroPython pre-installed. Comes with unassembled male headers, stackable headers, a JST PH battery connector, and a JST MicroBlade battery connector.

$33.53 AUD, inc GST
$30.48 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 10-25 $29.26 (exc GST)
  • 25+ $28.35 (exc GST)
- +

8 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

TinyPICO is the world’s smallest, fully-featured ESP32 development board, designed to give you access to the power of the ESP32’s dual core 240 MHz processor and internet connectivity, all in a package smaller than your thumb!

As newer versions of Micropython are released, you are able to update as you require from micropython.org

The Unexpected Maker has filled every nook on this board, packing a massive 700mA 3.3V regulator, on-board battery management, an RGB LED, 4MB of extra PSRAM and 14 GPIO!

TinyPICO is tuned for ultra low current use, dropping as low as 20uA when in deepsleep.

Specifications

  • 32 Bit dual core @ 240Mhz
  • 2.4GHz WiFi - 802.11b/g/n
  • Bluetooth BLE 4.2
  • 4MB SPI Flash
  • 4MB Extra PSRAM
  • APA102 RGB LED onboard
  • USB + Serial/UART for programming
  • 700mA 3.3V LDO Regulator
  • LiPo Battery Management
  • Optimised power path for low power battery usage
  • JST pads on the bottom supports PH and MicroBlade
  • 14x GPIO Broken out
  • Breadboard friendly
  • Dimensions 18mm x 32mm (Tiny!)

Features:

Combine with the I2C Breakout Shield to make-low power projects
