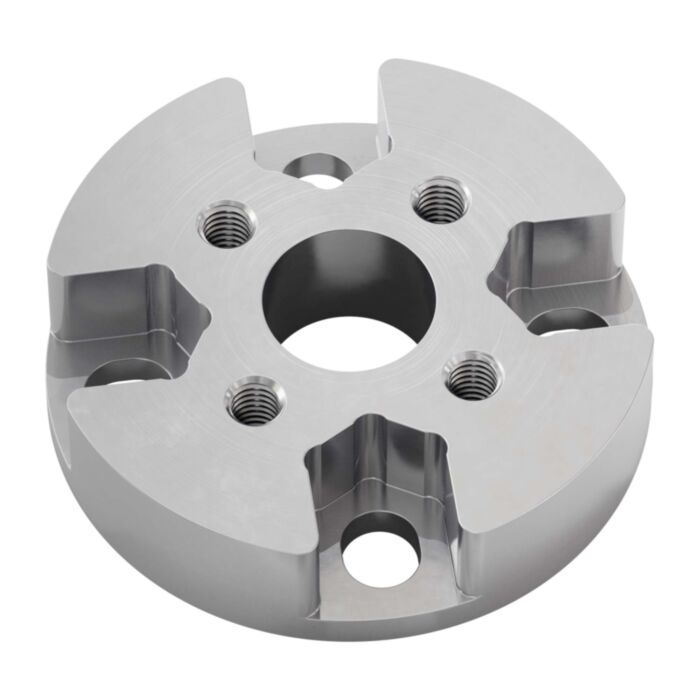

Threaded REV to Thru-Hole goBILDA Pattern Adaptor (16-9)

SKU: GB-1206-0016-0009 Brand: goBilda

The thru-holes on this adaptor align with the 16mm pattern found on almost every goBILDA part but are slotted outward for edge-case.....

$10.05 AUD, inc GST

$9.14 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 02 and Jan 06

Quantity Discounts:

10-25 $8.68 (exc GST)
25+ $8.23 (exc GST)

The thru-holes on this adaptor align with the 16mm pattern found on almost every goBILDA part but are slotted outward for edge-case situations where you need to align with holes spaced 24mm across the center. The counterbores allow heads of M4 socket head screws to rest below the top surface so you have a clean slate to fasten a part to.

The M3 threaded holes align with the REV pattern that measures 16mm across center. These holes allow you to fasten nearly any REV component that has thru-holes with ease.

Downloads

STEP File

Specs

Weight	12g
Material	Aluminum
Finish	Clear Anodized

This product is listed in:

goBILDA>STRUCTURE>Pattern Adaptors>REV Robotics to goBILDA>Motor Mounts for REV Robotics Motors>For REV Core Hex Motor
