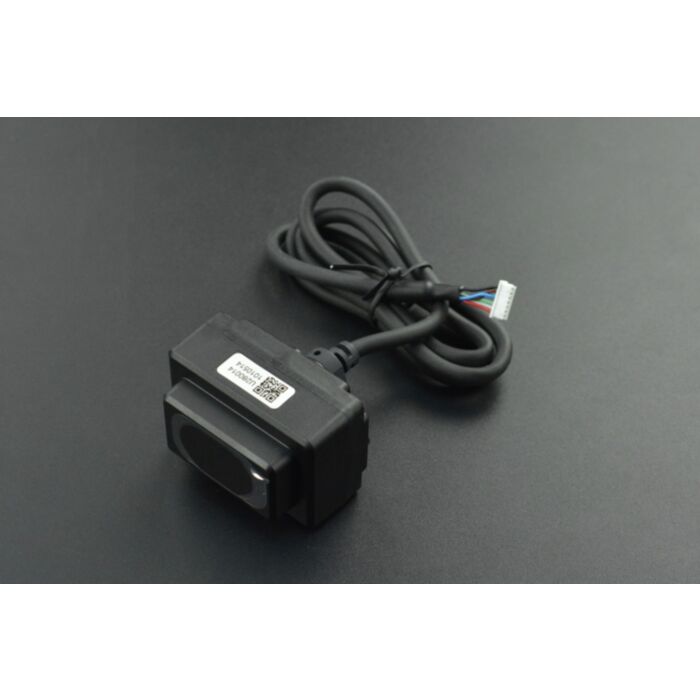

TFmini-i LiDAR Laser Range Sensor (12m)
Available with a lead time
Expect dispatch between May 20 and May 27
Quantity Discounts:
- 5+ $129.77 (exc GST)
TFmini-i LiDAR is an industrial-grade medium-range distance sensor.Its maximum detection range can reach up to 12mand it has an adjustable frame rate with a maximum of 1KHz.
This rangefinder has a PC/ABS/PMMA enclosure with IP65 water and dust resistance.It supports a wide range of input voltages (7-30V) with reverse protection to protectthe internal circuit and adopts RS485 communication interface and standard Modbus protocol.Multiple built-in operating modes are included for the users to change their parameters andconfigurations to meet different applications.
The TFmini-i LiDAR can be used on the Arduino UNO R3 through the TTL to RS485 Shield, and it can also be used on the Raspberry Pi through theUSB to RS485 module. Those two ways provided by DFRobot can make TFmini-i LiDAR easier to use.
How does TFmini-i LiDAR work?
TFmini-i is a single point LiDAR, which is based onPulse Time of Flight (PTOF).
It adopts an incoherent energy receiving mode, and the detection is mainlybased on Pulse counting. TFmini-i emits a narrow pulse laser, which is collimated by the transmittinglens to form a collimated light, which enters the receiving system after being reflected by the measuredtarget and is focused on the APD detector by the receiving lens.
The time between the transmitted signal and the received signal is calculated through the circuit amplification and filtering, and the distance between TFmini-i and the measured target can be calculated through the speed of light.
Application
SELECTION GUIDE
| Parameters | TFmini-i LiDAR | TF02-i LiDAR | |
| ProductPerformance | Operating Range | 0.1-12m@90% reflectivity | 0.1-40m@90% reflectivity |
| 0.1-7m@10% reflectivity | 0.1-13.5m@10% reflectivity | ||
| 0.1-12m@90% reflectivity&70Klux | 0.1-40m@90% reflectivity&100Klux | ||
| 0.1-7m@10% reflectivity&70Klux | 0.1-13.5m@10% reflectivity&100Klux | ||
| Accuracy | ±6cm (0.1~6m), ±1% (6~12m) | ±5cm (0.1~5m), ±1% (5~40m) | |
| Distance resolution | 1cm | 1cm | |
| Frame rate | 100Hz | 100Hz | |
| Ambient light immunity | 70Klux | 100Klux | |
| Operating temperature | -20~60°C | -20~60°C | |
| Enclosure rating | IP65 | IP65 | |
| Optical Parameters | Light source | VCSEL | VCSEL |
| Central wavelength | 850nm | 850nm | |
| Photobiological safety | Class1(EN60825) | Class1(EN60825) | |
| FOV (Field of view) | 2° | 3° | |
| Electrical Parameters | Supply voltage | 7~30V | 7~30V |
| Average current | =65mA@12V | =70mA@12V | |
| Power consumption | =0.8W@12V | =0.85W@12V | |
| peak current | 100mA | 100mA | |
| Others | Communication interface | RS-485 | RS-485 |
| Dimensions | 50mm*34mm*41mm(L*W*H) | 69mmx41.5mmx31.5mm(L*W*H) | |
| Enclosure material | PC/ABS/PMMA | PC/ABS/PMMA | |
| Storage temperature | -30~75°C | -30~80°C | |
| Weight | Weight 52g | Weight 60g(with cable) | |
| Cable length | 70cm | 70cm |
Features
Applications
Specification
Product Performance
0.1-12m@90% reflectivity
0.1-7m@10% reflectivity
0.1-12m@90% reflectivity & 70Klux
0.1-7m@10% reflectivity & 70Klux
Optical Parameters
Electrical Parameters
Others
Parts List
