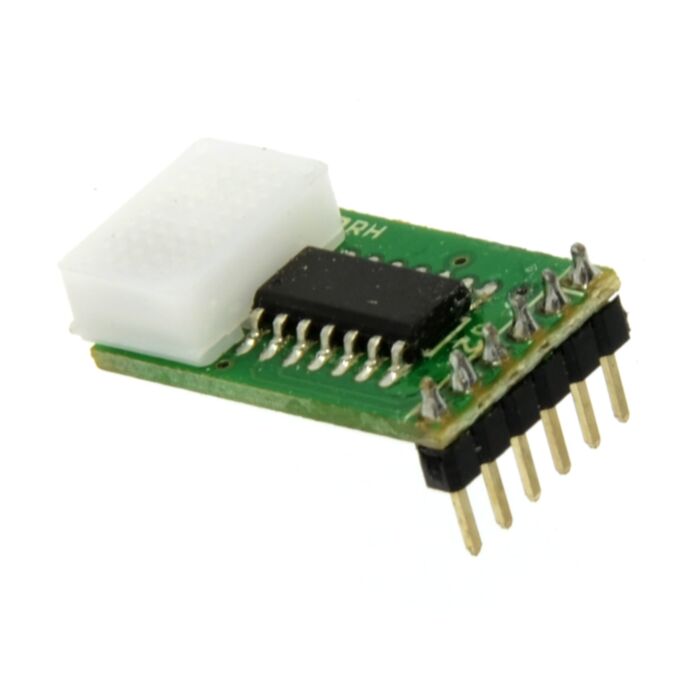

Temperature and Relative Humidity Sensor Module

SKU: 017-MB-SM24118

$8.61 AUD, inc GST
$7.83 AUD, exc GST

More Views

Temperature and Relative Humidity Sensor Module

SKU: 017-MB-SM24118

$8.61 AUD, inc GST
$7.83 AUD, exc GST


  • $6.95 Standard (2-4 days, tracked)
  • $9.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This product has been retired and kept here for reference.

This module can be used to measure both temperature and relative humidity. It is fully calibrated and supports SPI output. It features high data transferring rate, high measuring accuracy. It is especially suitable for Consumer products, Weather stations, HVAC applications, etc.


  • Compact size: 19.00mm(L) * 12.00mm(W) * 10.80mm (H)
  • Unique relative temperature and humidity sensor
  • Pre-calculated temperature and humidity read-out, no extra calculation needed
  • Dew point calculation possible
  • Fully calibrated, digital output
  • Excellent long term stability
  • Ultra low power consumption
  • Fully interchangeable
  • Automatic power down




Humidity Resolution
Max. 1%
Typical 1%
Accuracy Uncertainty
Typical 3%; Max. 5% ([email protected] to 50oC)
Typical 1%

Humidity Range

Min. 10%; Max. 98% (Temperature @ 0 to 50 oC)

Response Time

Typical 60 seconds


Temperature Resolution

Typical 0.1oC


Typical 0.1oC; Max. 0.2oC

Temperature Range

Min. -40 oC; Max. 70oC


Typical ±0.5oC; Max .± 1.0 oC
Response Time
60 seconds (delta T=1.0)


  • HVAC control products
  • Consumer products
  • Weather stations
  • Humidifier
  • Dehumidifier
  • Test and measurements
  • Data logging
  • White goods
