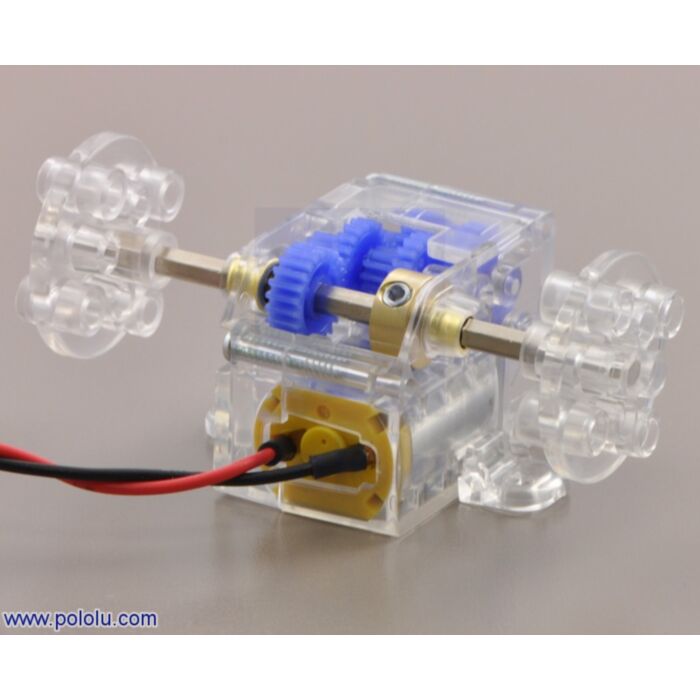

Tamiya 70189 Mini Motor Low-Speed Gearbox (4-Speed) Kit

The mini-motor gearbox kit from Tamiya makes it easy to get a small robot or plastic model moving. The kit includes one brushed DC motor and all the gears and parts to build any of the four possible gear ratio configurations: 71.4:1, 149.9:1, 314.9:1, or 661.2:1. The four gear ratio options give you the flexibility to choose the best speed and torque for your project.

The gear train of the low-speed gearbox includes a self-locking worm gear, which means the gear train can not be back-driven (the motor can spin the output axle in both directions, but you cannot turn the output axle with your hand). Not being able to back-drive the gear train is useful when powering vehicles that stop on steep inclines, or when powering mechanisms that lift heavy objects off the ground (like gates or drawbridges).

Parts included with the Tamiya 70189 mini motor low-speed gearbox (4-speed) kit with quarter for size reference.

The kit includes step-by-step illustrated instructions in both Japanese and English. A scanned copy of the instructions is available on the Pictures tab. The kit can be built with just a screwdriver, but the instructions recommend having side cutters, tweezers, and a modeling knife on hand. The gearbox kit’s motor has a 030 form factor that is smaller than the Tamiya gearboxes that use the Mabuchi FA-130 motor.

Box front for Tamiya mini motor low-speed gearbox (4-speed) kit.

Instructions for Tamiya mini motor low-speed gearbox (4-speed) kit page 3.

Box back for Tamiya mini motor low-speed gearbox (4-speed) kit shows the possible gear ratios in orange.

Features

• 030-form-factor motor
  • Speed @ 3 V: 8400 RPM
  • Free-run current @ 3 V: 60 mA
  • Stall current @ 3 V: 600 mA
  • Stall torque @ 3 V: see picture to the right for torque table
• 4 different gear ratios, which can be adjusted by changing the final gear position
  • 71.4:1
  • 149.9:1
  • 314.9:1
  • 661.2:1
• Self-locking worm gear prevents gear-train from being back-driven
• 3 mm hexagonal output shaft compatible with Pololu's adapter for LEGO wheels and many of Tamiya’s wheels.
• Two mounting orientations
• Mounting holes designed to work with the Tamiya 70098 universal plate set and other Tamiya construction series products.
• Transparent gear housing shows the internal mechanisms
• Compact size of approximately 20 x 24 x 30 mm (0.8" x 1" x 1.2")

Note: The Tamiya 70189 mini motor low-speed gearbox (4-speed) is a kit; assembly is required.
