Tamiya 70172 Universal Plate L (210x160mm)

SKU: POLOLU-734 Brand: Pololu

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

Instructions for Tamiya 70172 Universal Plate L (210×160 mm) page 1.

The Tamiya 70172 Universal Plate L (210 x 160 mm) is a customizable chassis designed to be compatible with multiple Tamiya products.

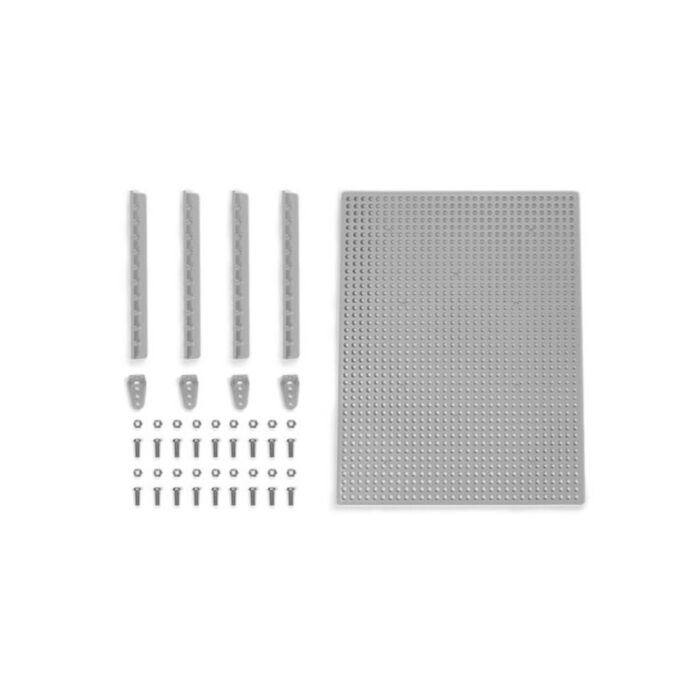

This set includes a plastic plate with an 41 x 31 grid of 3 mm holes spaced 5 mm apart, which provides space for many mechanical connections. The four included eleven-hole angle brackets can connect additional Universal Plates or can serve as a mounting point for an axle. The plate set also includes four shaft mounts (the triangular brackets in the above picture) for supporting axles at one of three heights from the plate. The kit provides eighteen screws and eighteen nuts for connecting the angle brackets and shaft mounts to the plate.

Included Parts

41 x 31 grid of 3 mm holes spaced 5 mm apart (210 x 160 mm, 8.27" x 6.3")
Four eleven-hole angle brackets
Four shaft mounts
18 screws and 18 nuts

Tamiya Universal Plates

Universal Plate Set 70098
Universal Plate Set (2pcs.) 70157
Universal Plate Set L (210 x 160 mm) 70172 (this product)

Compatible Gearbox Kits

People often buy this product together with:

Tamiya 70105 3mm Diameter Shaft Set

Tamiya 70157 Universal Plate Set (2pcs.)

Tamiya 70143 Universal Arm Set
