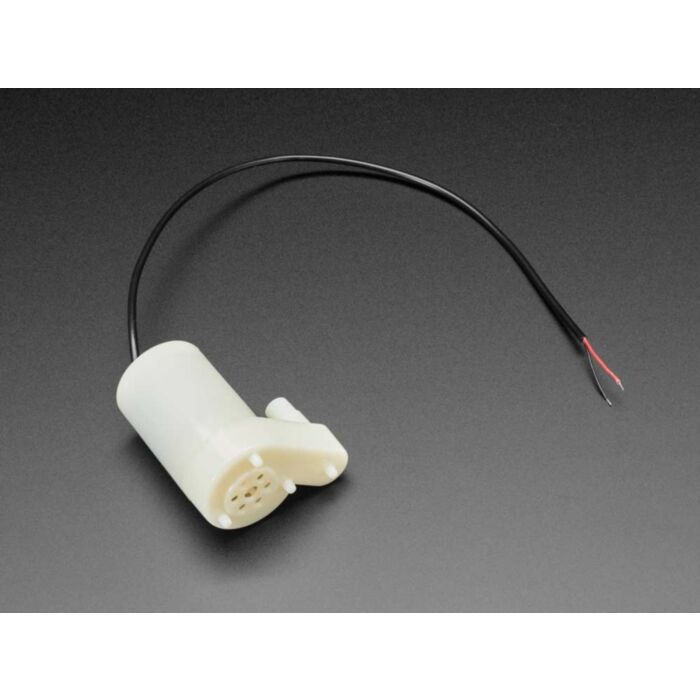

Submersible 3V DC Water Pump - Vertical Type

Rating:

100% of 100

SKU: ADA4547 Brand: Adafruit

Make fountains or plant-watering projects with this submersible water pump. It's great for beginner projects and super easy to use! The pump is basically a DC motor...

$7.90 AUD, inc GST

$7.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $6.89 (exc GST)
25+ $6.68 (exc GST)

Recommended Essentials:

Tubing for Submersible Pumps - PVC 6mm ID - 1 Meter Long

$4.95

If you're looking for an in-stock alternative, check out this mute sounds pump.

Make fountains or plant-watering projects with this submersible water pump. It's great for beginner projects and super easy to use! The pump is basically a DC motor that is powered with 3V and draws 100mA. When powered, the pump sucks water in from the side of the plastic casing and pushes it out the tubing port. The pump must be primed by keeping it inside water at all times. Reversing the polarity does not turn it into a suction device, it will only pump water!

This isn't for use with drinking water! Adafruit don't have longevity rating for this pump, Adafruit have run it for a week and it seems OK but Adafruit would not recommend it for long term installations. It's best used by students and artists who want something simple and inexpensive.

You can PWM the motor to speed up or slow down the flow rate. Works great with either a power transistor (basic on/off) or a motor driver chip such as the L293D. If you need a self-priming / food-safe / reversible direction pump, check out Adafruit's peristaltic pumps!

Please note: This is just the pump and power wires. Silicone tube is not included, so why not grab this 1 meter long PVC tubing while you're here?

We also carry this pump in a horizontal style.

Technical Details

Wire length: ~23cm
Pump body: 45mm long
Pump body diameter: 23.5mm

Diagram
