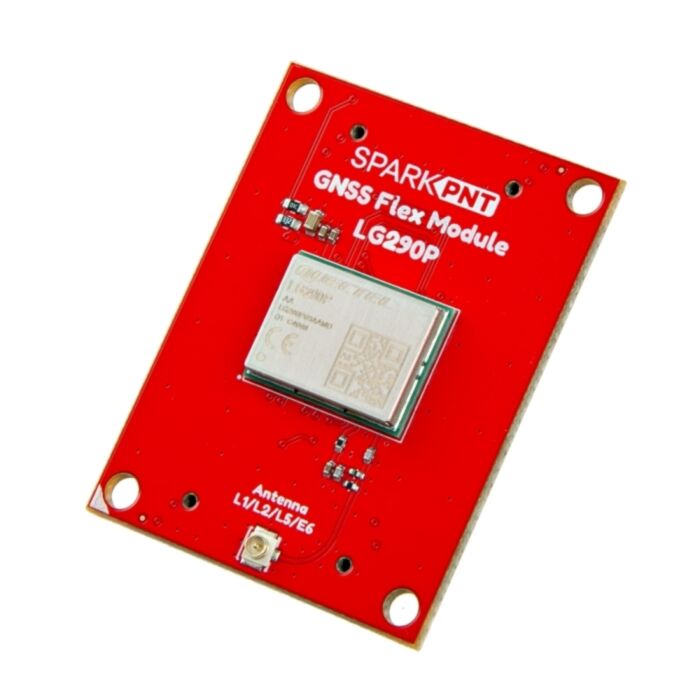

SparkPNT GNSS Flex Module - LG290P

SKU: GPS-28139 Brand: Sparkfun

SparkPNT GNSS Flex modules are plug-in boards featuring different GNSS receivers. They are designed to be easily swapped for repairs and pin-compatible...

Special Price $217.80 AUD, inc GST

Regular Price $269.50 AUD, inc GST

$198.00 AUD, exc GST

Special pricing ends 06 October 2025

* this special may end earlier than shown

Available with a lead time
Expect dispatch between Jul 14 and Jul 15

SparkPNT GNSS Flex modules are plug-in boards featuring different GNSS receivers. They are designed to be easily swapped for repairs and pin-compatible for upgrades. The boards have two 2x10-pin, 2mm pitch female headers connecting to carrier boards. For the LG290P GNSS receiver, these pins will break out the UART (x3) and I2C (Feature is still under development) interfaces, along with the PPS and event signals using a standardized pinout.

This SparkPNT GNSS Flex module features the Quectel LG290P GNSS receiver. The LG290P module is a quad-band, multi-constellation, high-precision, RTK GNSS receiver. The module can simultaneously receive signals from the L1, L2, L5, and L6/E6 frequency bands of the GPS, GLONASS, Galileo, BDS, QZSS, and NavIC GNSS constellations. In addition, the module supports SBAS augmentation systems (WASS, EGNOS, BDSBAS, MSAS, GAGAN, and SDCM), PPP services (Feature is still under development) (BDS PPP-B2b, QZSS CLAS, MADOCA-PPP, and Galileo HAS), RTCM, and RTK corrections for precision navigation with a fast convergence time and reliable performance.

The built-in NIC anti-jamming unit provides professional-grade interference signal detection and elimination algorithms, effectively mitigating multiple narrow-band interference sources and significantly improving signal reception performance in complex electromagnetic environments. Additionally, the embedded algorithms ensure reliable positioning in complex scenarios such as urban environments and deep tree cover.

Note: The module currently supports only the UART interfaces. The corrections for some of the PPP services may not have been implemented yet.

Features & Specs

LG290P GNSS Flex Module:

Quectel LG290P GNSS receiver
- Concurrent signal reception: 5 + QZSS
  - L1, L2, L5, E6 frequency bands
- GNSS Constellations:
  - GPS (USA)
  - GLONASS (Russia)
  - Galileo (EU)
  - BDS (China)
  - QZSS (Japan)
  - NavIC (India)
- SBAS Systems:
  - WASS (USA)
  - SDCM (Russia)
  - EGNOS (EU)
  - BDSBAS (China)
  - MSAS (Japan)
  - GAGAN (India)
- Built-in NIC anti-jamming unit
Two 2x20-pin, 2mm-pitch female headers
- 40-pin socket for GNSS Flex system
  - Power
    - USB
    - 3.3V
    - Backup power
  - UART (x3)
  - I²C bus
  - PPS signal (x1)
  - LED indicators (x1)
  - Event indicators (x1)
U.FL Connector:
- GNSS Antenna (Active, Multi-band)

LG290P General Features

High-precision GNSS module
Electrical Characteristics:
- Supply Voltage: 3.15–3.45V
- Current Consumption:
  - Normal Operation:
    - 91mA (300.3mW) (Acquisition)
    - 91mA (300.3mW) (Tracking)
  - Power Saving Mode:
    - 12µA (39.6mW) (Backup Mode)
GNSS Frequency Bands:
- GPS: L1 C/A, L1C*, L5, L2C
- GLONASS: L1, L2
- Galileo: E1, E5a, E5b, E6
- BDS: B1I, B1C, B2a, B2b, B2I, B3I
- QZSS: L1 C/A, L1C*, L5, L2C
- NavIC: L5
- SBAS: L1 C/A
- L-band PPP*:
  - PPP: B2b
  - QZSS: L6
  - Galileo HAS: E6
Tracking Channels: 1040
Horizontal Position Accuracy:
- Autonomous: 0.7m
- RTK: 0.8cm + 1ppm
Vertical Accuracy:
- Autonomous: 2.5m
- RTK: 1.5cm + 1ppm
Velocity Accuracy Without Aid: 0.03m/s
Accuracy of 1PPS Signal: 5ns (RMS)
RTK Convergence Time: 5s
Time to First Fix (without AGNSS):
- Cold Start: 28s
- Warm Start: 28s
- Hot Start: 1.7s
Sensitivity:
- Acquisition: -146dBm
- Tracking: -160dBm
- Reacquisition: -155dBm
Dynamic Performance:
- Maximum Altitude: 10000m
- Maximum Velocity: 490m/s
- Maximum Acceleration: 4g
Update Rate:
- Default: 10Hz
- Max: 20Hz
Antenna Interface:
- External active antenna
- Power Supply: External or Internal
Interfaces
- UART (x3)
  - Baud Rate: 9600–3000000bps
  - Default: 460800bps
  - Protocol: NMEA 0183/RTCM 3.x
- SPI* (x1)
- I2C* (x1)
Operating temperature: -40°C to +85°C
Footprint: 12.2mm × 16mm × 2.6mm
Weight: ~0.9g

*
