SparkFun Qwiic Shield for Teensy - Extended

SKU: DEV-17156 Brand: Sparkfun

The SparkFun Extended Qwiic Shield for Teensy provides you with a quick and easy way to enter into SparkFun's Qwiic ecosystem with your Teensy boards. This shield...

$8.20 AUD, inc GST

$7.45 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 27 and Dec 30

Quantity Discounts:

10-25 $7.23 (exc GST)
25+ $7.08 (exc GST)

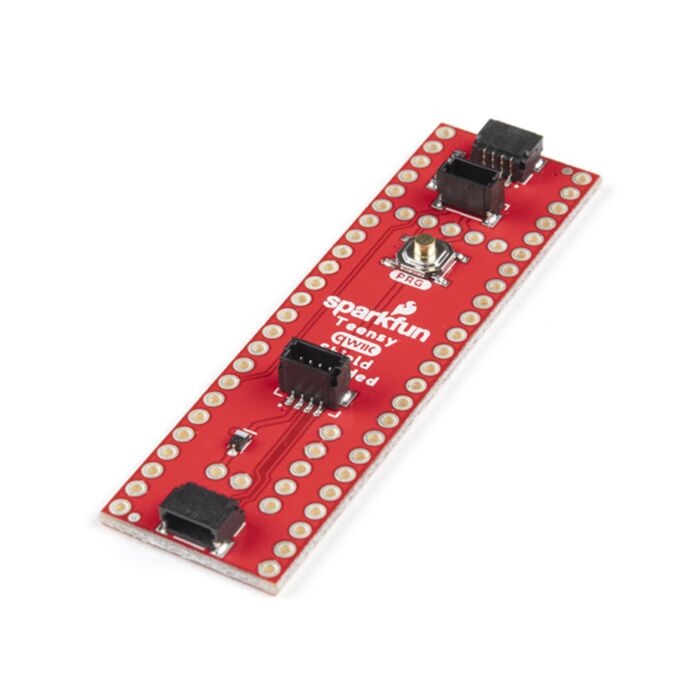

The SparkFun Extended Qwiic Shield for Teensy provides you with a quick and easy way to enter into SparkFun's Qwiic ecosystem with your Teensy boards. This shield is sized to work with the footprint of Teensy 4.1, Teensy 3.6, and Teensy 3.5. This shield connects the I²C bus (GND, 3.3V, SDA, and SCL) on your Teensy to four SparkFun Qwiic connectors (two horizontally and two vertically mounted). The Qwiic ecosystem allows for easy daisy chaining so, as long as your devices are on different addresses, you can connect as many Qwiic devices as you'd like.

We have also added a "PROG" button on this shield that is electrically parallel with the "PROG" button on the Teensy Boards so you can choose to use either the button on your Teensy or the button on the shield to put your Teensy into Programming mode.

The Qwiic Shield for Teensy comes with two 24-pin and one 5-pin headers and will need to solder the headers to the shield and, if necessary, to your Teensy board. Take care to match the markings on the Qwiic Shield to the appropriate pins on your Teensy to avoid possibly damaging your boards.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Get Started with the SparkFun Qwiic Shield for Teensy Hookup Guide

Includes

SparkFun Qwiic Shield for Teensy - Extended
2x 24-pin headers
1x 5 pin header

Features

Teensy 4.1, 3.6, or 3.5 Footprint Compatible
4x Qwiic Connection Ports
"PROG" Button w/ satisfying tactile feedback
I²C Jumper
3.3V and GND Buses
