SparkFun Pro Micro - RP2350
In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow*
Disclaimer:
The shipping address needs to be in the AusPost next day network
and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to
one business day due to AusPost pickup timings or for order verifications.
Quantity Discounts:
- 10-25 $23.15 (exc GST)
- 25+ $22.67 (exc GST)

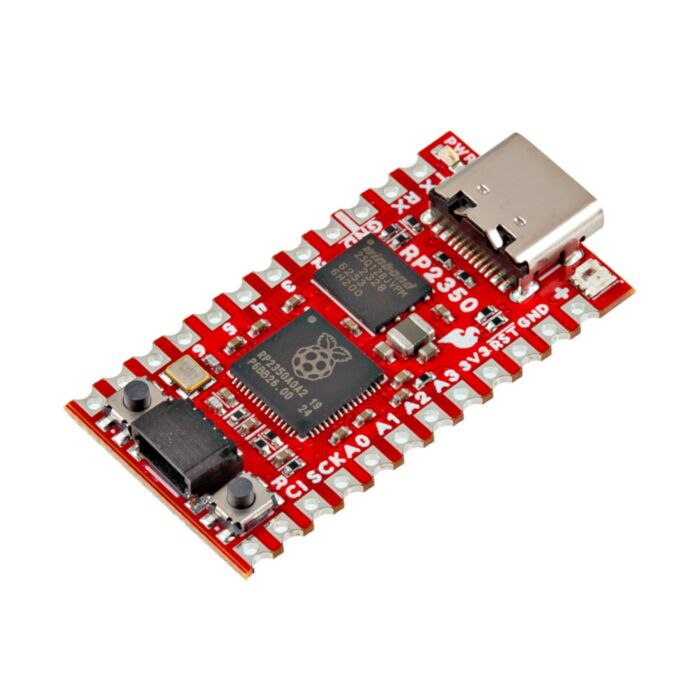

The SparkFun RP2350 Pro Micro provides a powerful development platform in SparkFun's compact Pro Micro form factor, built around the RP2350 from the Raspberry Pi Foundation. This board uses the updated Pro Micro form factor. It includes a USB-C connector, Qwiic connector, WS2812B addressable RGB LED, Boot and Reset buttons, resettable PTC fuse, and PTH and castellated solder pads.
The RP3250 is a unique dual-core microcontroller with two ARM® Cortex® M33 processors and two Hazard3 RISC-V processors, all running at up to 150 MHz! Now, this doesn't mean the RP2350 is a quad-core microcontroller. Instead, users can select which two processors to run on boot instead. You can run two processors of the same type or one of each. The RP2350 also features 520kB SRAM in ten banks, a host of peripherals including two UARTs, two SPI and two I2C controllers, and a USB 1.1 controller for host and device support.
The Pro Micro also includes two expanded memory options: 16MB of external Flash and 8MB PSRAM connected to the RP2350's QSPI controller. The RP2350 Pro Micro works with C/C++ using the Pico SDK and MicroPython development environments.
The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.
Get Started With the SparkFun Pro Micro RP2350 Guide
Features
RP2350 Features
- Dual ARM CortexM33 and Hazard3 RISC-V Processors
- User-selectable for dual-cores
- 520kB integrated SRAM in 10 banks
- 3.3V-tolerant GPIO
- Peripherals
- 2x UART
- 2x SPI
- 2x I2C
- 24x PWM Channels
- 12x PIO State Machines
SparkFun Pro Micro - RP2350 Features
- RP2350 Microcontroller
- 8MB PSRAM
- 16MB Flash
- Supply Voltage
- USB: 5V
- RAW: 5.3V MAX
- Pro Micro Pinout
- 2x UART
- 1x SPI
- 10x GPIO (4 used for UART1 and UART0)
- 4x Analog
- USB-C Connector
- USB 1.1 Host/Device Support
- Qwiic Connector
- Buttons
- Reset
- Boot
- LEDs
- WS2812 Addressable RGB LED
- Red Power LED
- Dimensions: 1.3in x 0.7in (33.02mm x 17.78mm)
