SparkFun OpenPIR

SKU: SEN-13968

$21.86 AUD, inc GST
$19.87 AUD, exc GST

More Views

SparkFun OpenPIR
21.86 AUD

SKU: SEN-13968

$21.86 AUD, inc GST
$19.87 AUD, exc GST

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

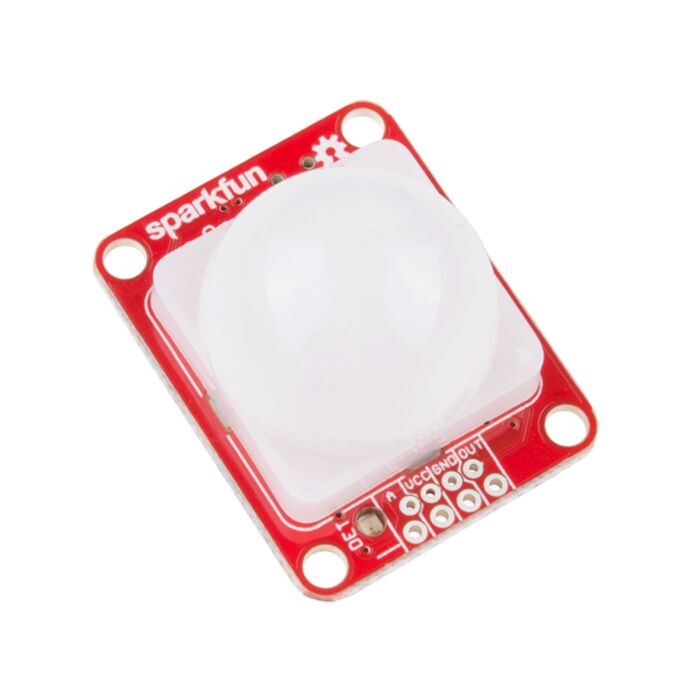

The SparkFun OpenPIR is a highly customizable Passive Infrared (PIR) sensor based around the NCS36000 PIR controller. Passive infrared (PIR) sensors are able to detect motion in a small/local area –– they’re the sensor of choice in security systems, home automation and proximity-sensing applications. The OpenPIR allows you to set the sensitivity, trigger time and pulse mode of the motion sensor so you can tailor-fit it to your application!

The OpenPIR has a multitude of characteristics unique to itself, including two trimpots to adjust sensitivity (view distance) and the oscillator to control the length of time the output remains HIGH, as well as a trigger that supports two motion-detection modes: single-pulse and dual-pulse. Additionally, each OpenPIR is equipped with a reverse-entry green LED, which duplicates the status of the OUT pin. When motion is detected, the LED will illuminate; otherwise it will remain off.

The SparkFun OpenPIR supports a power supply range of 3VDC to 5.75VDC at 80µA standby (3mA when detecting motion) and is able to be connected via a standard 0.1" header or a 4-pin JST PH connector.

Get Started with the SparkFun OpenPIR Guide

Features:

  • Voltage Supply Range: 3VDC to 5.75VDC
  • Standby Average Current: 80µA
  • Motion-Detected Average Current: 3mA (LED enabled)
  • Integrated 2−Stage Amplifier
  • Internal LDO to Drive Sensor
  • Internal Oscillator with External RC
  • Single or Dual Pulse Detection
