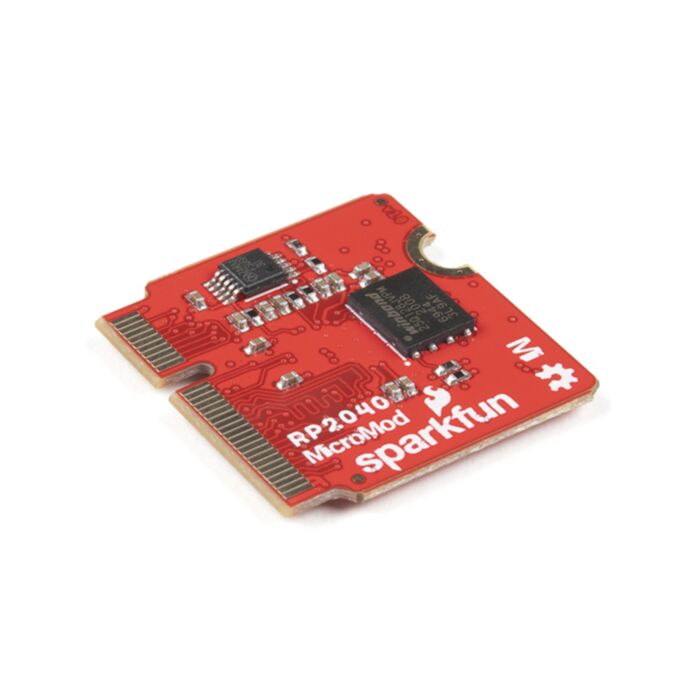

SparkFun MicroMod RP2040 Processor

SKU: DEV-17720 Brand: Sparkfun

The SparkFun MicroMod Pi RP2040 Processor Board is a low-cost, high-performance board with flexible digital interfaces featuring the Raspberry Pi Foundation's RP2040...

$24.52 AUD, inc GST

$22.29 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 29th of Apr

Quantity Discounts:

10+ $21.95 (exc GST)

The SparkFun MicroMod Pi RP2040 Processor Board is a low-cost, high-performance board with flexible digital interfaces featuring the Raspberry Pi Foundation's RP2040 microcontroller. With the MicroMod M.2 connector, connecting your MicroMod Pi RP2040 Processor Board is a breeze. Simply match up the key on your processor's beveled edge connector to the key on the M.2 connector and secure it with a screw (included with all Carrier Boards).

The RP2040 utilizes dual ARM Cortex-M0 processors (up to 133MHz):

264kB of embedded SRAM in six banks
6 dedicated IO for SPI Flash (supporting XIP)
30 multifunction GPIO:
- Dedicated hardware for commonly used peripherals
- Programmable IO for extended peripheral support
- Four 12-bit ADC channels with internal temperature sensor (up to 0.5 MSa/s)
USB 1.1 Host/Device functionality

The RP2040 is supported with both C/C and MicroPython cross-platform development environments, including easy access to runtime debugging. It has UF2 boot and floating-point routines baked into the chip. The built-in USB can act as both device and host. It has two symmetric cores and high internal bandwidth, making it useful for signal processing and video. While the chip has a large amount of internal RAM, the board includes an additional external flash chip.

MicroMod is a modular interface ecosystem that connects a microcontroller “processor board” to various “carrier board” peripherals. Utilizing the M.2 standard, the MicroMod standard is designed to easily swap out processors on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!

Features

RP2040 General Features

Dual Cortex M0 processors, up to 133 MHz
264 kB of embedded SRAM in 6 banks
6 dedicated IO for QSPI flash, supporting execute in place (XIP)
30 programmable IO for extended peripheral support
SWD interface
Timer with 4 alarms
Real time counter (RTC)
USB 1.1 Host/Device functionality
Supported programming languages
- MicroPython
- C/C

Specific Peripherals made available on MicroMod RP2040

1x USB dedicated for programming and debug (Host capable)
2x UARTs
2x I²C
2x SPI
29x GPIO
2x Digital Pins
3x Analog Pins
16x PWM
128Mbit/16MB (external) flash memory
Status LED
VIN Level ADC

Documents

MicroMod Pi RP2040 Processor Documentation

RP2040 Datasheet (31.2 MB)

MicroMod Documentation:

SparkFun MicroMod Interface v1.0 - Pinout
SparkFun MicroMod Interface v1.0 - Pin Descriptions
Getting Started with MicroMod
Designing with MicroMod
MicroMod Info Page
MicroMod Forums
SparkFun Eagle Libraries contains example footprints for the M.2 connector and SMD standoff
M.2 MicroMod Connector Datasheet
MicroMod Reflowable Standoff Datasheet
