SparkFun Air Velocity Sensor Breakout - FS3000-1015 (Qwiic)

SKU: SEN-18768 Brand: Sparkfun

The SparkFun FS3000-1015 Qwiic Air Velocity Sensor Breakout can help you accurately determine the speed and consistency of air moving around you...

$114.95 AUD, inc GST

$104.50 AUD, exc GST

Available with a lead time
Expect dispatch between May 07 and May 10

Quantity Discounts:

5-10 $101.36 (exc GST)
10+ $99.27 (exc GST)

Need to keep track of the airflow in your data center or around your servers? How about making sure your HVAC and air control systems are functioning at full capacity? Well, the SparkFun FS3000-1015 Air Velocity Sensor Breakout can help you with all that and more! It's super easy and super quick (Qwiic!) to hook up.

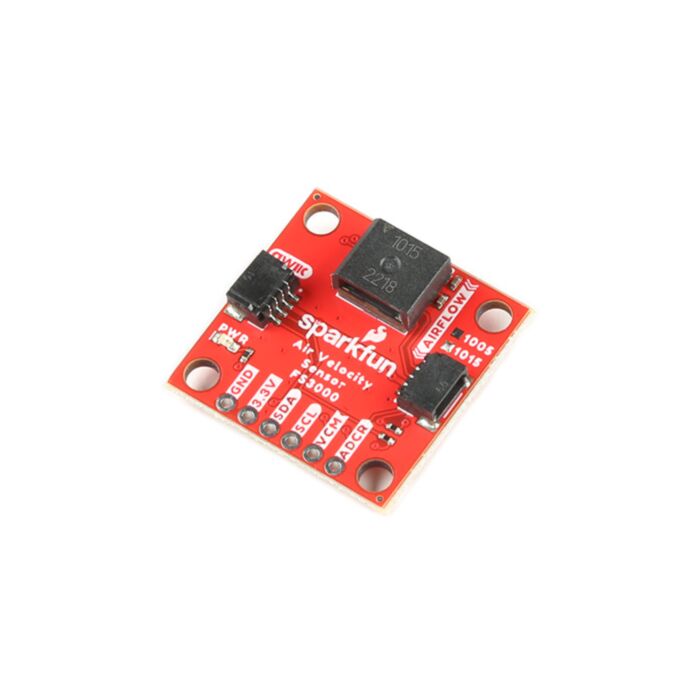

This breakout board is focused around Renesas' FS3000-1015, a surface-mount air velocity module with a range of 0-15m/s (0-33.6mph), which is twice as much as the FS3000-1005. It utilizes a MEMS thermopile-based sensor, features a digital output with 12-bit resolution and comprises a “solid” thermal isolation technology and silicon carbide coating to protect it from abrasive wear and water condensation.

We've written an Arduino library to help you get started quickly. You can download the library through the Arduino library manager by searching 'SparkFun Air Velocity' or you can get the GitHub repo as a .zip file and install the library from there.

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Get Started with the Qwiic FS3000 Air Velocity Sensor Breakout

Features

I²C address: 0x28
Air flow speed: 0-15m/s (0-33.6mph)
Accuracy: 5% of full scale flow range
Resolution: 12-bit
Input Voltage: 2.7-3.3V (typically 3.3V via Qwiic)
Average Current Draw: 10mA
2x Qwiic Connectors
PWR LED
Jumpers
- LED
- I2C
- ADC-REF
Board Dimensions: 1.00in. x 1.00in.
