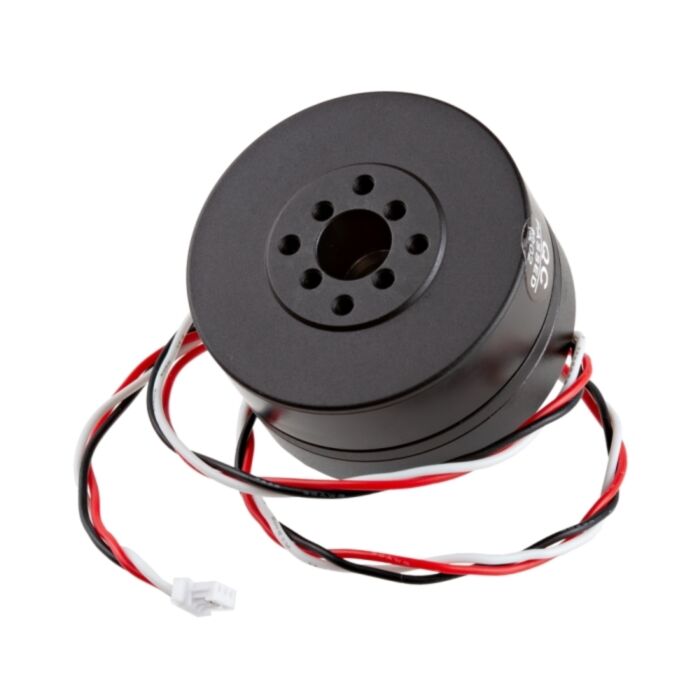

Gimbal Motor with Encoder - 12V, 467RPM

SKU: ROB-27478 Brand: Sparkfun

This high-performance 12V Gimbal Servo Motor is engineered for precision control in demanding applications. Its compact 40x20mm form factor houses a...

Special Price $90.55 AUD, inc GST

Regular Price $112.24 AUD, inc GST

$82.32 AUD, exc GST

Special pricing ends 03 August 2025

* this special may end earlier than shown

Available with a lead time
Expect dispatch between May 12 and May 13

This high-performance 12V Gimbal Servo Motor is engineered for precision control in demanding applications. Its compact 40x20mm form factor houses a powerful motor capable of delivering a nominal speed of 467 RPM, with a maximum speed of 1610 RPM.

The integrated AS5048A encoder provides high-resolution feedback for precise positioning, making this motor ideal for camera gimbals, robotics, and other precision motion control applications. Its compact size and lightweight design (71g) allow for easy integration into various systems. The wide operating temperature range (20°C to 80°C) and high maximum demagnetize temperature (120°C) ensure reliable performance in challenging environments. Whether you're building a sophisticated robotic arm or a high-precision camera stabilizer, this 12V Gimbal Motor with Encoder delivers the performance and reliability you need.

Features & Specs

Nominal Voltage: 12V
Nominal Current: 1.1A
Nominal Torque: 0.09N.m
Nominal Speed: 467rpm
Max Speed: 1610rpm
Stall Torque: 0.15N.m
Stall Current: 1.9A
Winding Turns of Motor: 40T
Phase to Phase Resistance: 6.34O
Phase to Phase Inductance: 1.08mH
Speed Constant: 117rpm/V
Torque Constant: 0.08Nm/A
Rotor Inertia: 56gcm²
Number of Pole Pairs: 11
Size: 40 x 16mm
Weight: 71g
Working Temperature: 20/80°C
Max Demagnetize Temperature: 120°C
Encoder Type: AS5048A

Documentation

Datasheet

This product is listed in:

Components & Parts>Motors>Brushless DC (BLDC)
