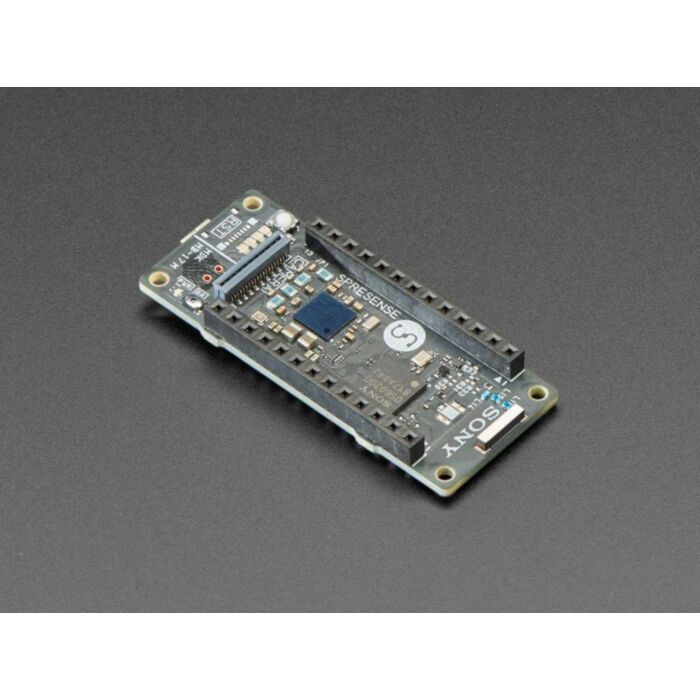

Sony Spresense Main Board - CXD5602

SKU: ADA4419 Brand: Adafruit

SPRESENSE is a low-power board computer for the IoT that is equipped with a GPS receiver and supports High-Resolution Audio codecs.

$164.95 AUD, inc GST

$149.95 AUD, exc GST

Quantity Discounts:

5+ $143.95 (exc GST)
10+ $139.45 (exc GST)

Out of Stock

SPRESENSE is a low-power board computer for the IoT that is equipped with a GPS receiver and supports High-Resolution Audio codecs. The board allows for IoT versatility and can be developed for a vast range of uses, such as a drone utilizing the GPS and high-performance processor, a smart speaker utilizing High-Resolution Audio recording and playback as well as the built-in full-digital amplifier, or a low-power time-lapse camera utilizing the camera interface. SPRESENSE will make the IoT smarter and more efficient.

Here's a compact development board based on Sony’s power-efficient multicore microcontroller CXD5602. It allows developers to create applications in a very short time and is supported by the Arduino IDE as well as the more advanced NuttX based SDK.

Integrated GPS - The embedded GNSS with support for GPS, QZSS and GLONASS enables applications where tracking is required.
Hi-res audio output and multi mic inputs - Advanced 192kHz/24 bit audio codec and amplifier for audio output, and support for up to 8 mic input channels.
Multicore microcontroller - Spresense is powered by Sony's CXD5602 microcontroller (ARM® Cortex®-M4F × 6 cores), with a clock speed of 156 MHz.

Despite its compact footprint of only 6.5 x 6.5mm, Sony's CXD5602 microcontroller runs 6 ARM Cortex-M4F cores with a clock speed of up to 156MHz and has an integrated GPS. Thanks to the FD-SOI (Fully Depleted Silicon On Insulator) production process, the CXD5602 chip is very power efficient which enables battery-dependent use cases.

Technical Details

Specifications:

Follow this link for more information on Sony's CXD5602 microcontroller
GitHub Repository
Spresense hardware and software guides and documentation
FAQ
Model name: CXD5602PWBMAIN1
Size: 50.0mm x 20.6mm
CPU: ARM® Cortex®-M4F x 6 cores
Maximum clock frequency: 156MHz
SRAM: 1.5MB
Flash memory: 8MB
Digital input / output: GPIO, SPI, I2C, UART, I2S
Analog input: 2ch (0.7 V range)
GNSS: GPS(L1-C/A), QZSS(L1-C/A), GLONASS(L1), WAAS, QZSS(L1-S)
Camera input: Dedicated parallel interface
Operating conditions: Temperature: 10 - 40°C, Humidity: 30% - 80% (no condensation)
Storage conditions: Temperature: -20 - 60°C, Humidity: 10% - 80%

Pinout Diagram
