Sony Spresense 5MP Camera Board

SKU: ADA4417 Brand: Adafruit

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

The latest addition to Spresense's hardware ecosystem is the Spresense Camera Board that connects directly to the main board’s camera interface.

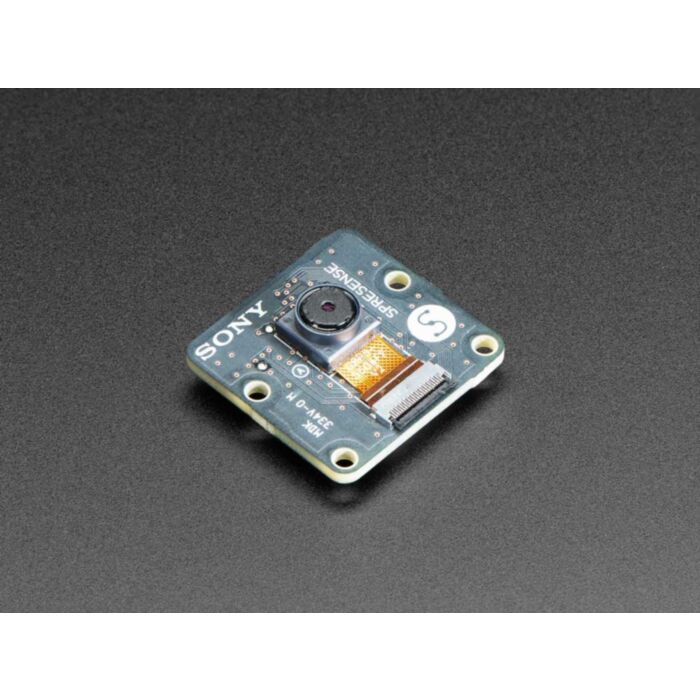

The Spresense camera board has the Sony ISX012 image sensor mounted with a lens. The Sony ISX012 has an effective pixel count of 5.11M pixels and an onboard encoder that can acquire pictures in JPEG, RAW, Y/C or RGB format.

More on the Sony ISX012 image sensor:

Sensor type: 1/4 type CMOS image sensor
Effective pixel: 5.11M pixels
Recording pixel: 5.04M pixels
ISO sensitivity: ISO 40～800
Scene selection: 12 preset
Exposure control mode: Auto, Shutter priority, ISO sensitivity priority, Long time AE
Photometry: Multi pattern, Center weight, Average, Spot
Exposure compensation: ±2EV, 1/3 EV steps
Shutter speed range: 1/8 s (long AE mode) to 1/42000 s
White balance: Auto, Daylight, Cloud, Fluorescent, Lamp
Focus control: Auto, Single AF, Continuous AF, Manual control
Output still picture format: JPEG(4:2:2), Y/Cb/Cr, YUV, RGB, RAW, JPEG+YUV(thumbnail)
Still data rate: 5M pixel 15 frame/s JPEG output
Movie data rate: SVGA 30 frame/s YCbCr output
HD movie support: 1080p(1920×1030 30 frame/s), 720p(1208×720 60 frame/s)
JPEG output, JPEG+YCbCr output

Note: This is just the camera board. You'll need the main board as well.

Technical Details

Specifications:

GitHub Repository
Spresense hardware and software guides and documentation
FAQ
Model name: CXD5602PWBCAM1
Size: 24mm x 25mm
Number of effective pixels: 2608 (H) x 1960 (V) = approx. 5.11 M pixels
Operation voltage: DC 3.7V
I/O voltage: DC 1.8V
Camera interface: CMOS 8 bit parallel
Output format: Y/C, RGB, RAW and JPEG
Control interface: I2C
Built-in filter: IR cut filter
FOV: 78° ± 3°
Depth of field: 77.5 cm ～ ∞
F value: 2.0 ± 5%
Focus: Fixed focus
Operating conditions: Temperature: 10 - 40℃, Humidity: 30% - 80% (no condensation)
Storage conditions: Temperature: -20 - 60℃, Humidity: 10% - 80%
