Solid-State Laser Radar for Robotics (160x60 resolution, FOV 108°x40°)

Skip to the beginning of the images gallery

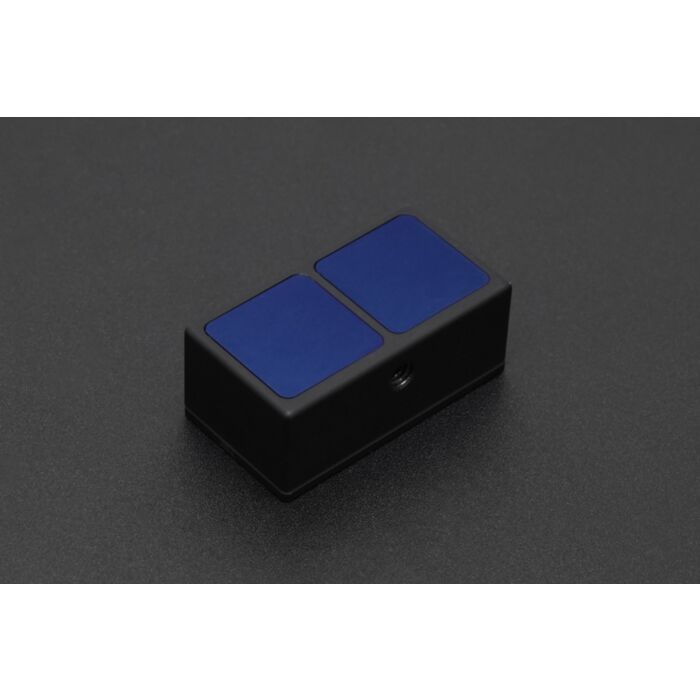

Solid-State Laser Radar for Robotics (160x60 resolution, FOV 108°x40°)

SKU: DFR1177 Brand: DFRobot

The advanced solid-state laser radar utilizes metasurface lens technology and cwToF principles for high-precision distance measurement. With a wide field...

$529.95 AUD, inc GST

$481.77 AUD, exc GST

Available with a lead time
Expect dispatch between May 30 and Jun 03

Quantity Discounts:

3+ $462.50 (exc GST)
5+ $448.05 (exc GST)

This equipment uses a laser and has the following restrictions:

the equipment is not intended for sale to the general public
the equipment is intended to be used in trades, professions or industries
the domestic or international prototype/product this equipment is to be used in will comply with relevant laws
the end-user of this equipment is licensed and trained to safely work with lasers

A declaration of use will need to be submitted during checkout.

The pure solid-state laser radar adopts advanced metasurface lens technology and is based on the continuous-wave Time-of-Flight (cwToF) principle. Coupled with related optical and electrical designs, it achieves wide-angle and high-precision distance measurement. It supports both UART and USB2.0 communication, providing outputs in the form of depth maps and infrared grayscale images. With a resolution of 160x60 and a wide field of view of 108°x40°, it can measure distances up to 4.5 meters and is resistant to ambient light up to 60Klux, making it suitable for both indoor and outdoor use. Its primary applications include volume measurement, access control security, people counting, unmanned forklifts, and robot obstacle avoidance.

Depth Mapping Visualization

^{Figure: Depth Mapping Visualization}

Metasurface Lens Technology

Metasurface lens technology utilizes nanostructures to control the propagation of light, achieving super-resolution imaging, holography, or projection. Unlike traditional cameras that only capture 2D images, this technology can enhance the existing 2D images by adding depth, distance, and directional information, thereby capturing a more comprehensive 3D perspective.

Wide Field of View

The radar offers an impressive 108° horizontal and 40° vertical field of view, allowing it to cover a broad area and capture more detailed information within its range.

System Field of View (FOV)

^{Figure: System Field of View (FOV)}

High Resolution

With a resolution of 160x60, the radar can provide detailed depth maps and infrared grayscale images, essential for precise measurements and applications that require high accuracy.

Solid-State Structure

The pure solid-state design ensures long life and durability, eliminating the moving parts found in traditional radars, which can wear out over time.

Ambient Light Resistance

The radar can function effectively in environments with ambient light up to 60Klux, ensuring reliable performance both indoors and outdoors.

Easy Communication

Supporting both UART and USB2.0, this radar is easy to integrate with various systems, enhancing its versatility and ease of use.

Features

Wide field of view 108°x 40°
160x60 resolution
Pure solid-state structure, long life
60Klux ambient light resistance, usable indoors and outdoors
Supports UART communication and USB2.0, easy to use
Horizontal and vertical angular resolutions are 0.675° and 0.683° respectively

Applications

Volume measurement
Access control security
People counting
Unmanned forklifts
Robot obstacle avoidance

Specification

Working voltage: 5V
Range: 0.1~4.5m (90% reflectivity white board)
Ranging accuracy: (0.1~3m)@±3cm, (3~4.5m)@±1%
Resolution: 160x60
Frame rate: 15Fps
Horizontal field of view: 108°
Vertical field of view: 41°
Horizontal angle resolution: 0.675°
Vertical angle resolution: 0.683°
Protection level: IP54
Ambient light resistance: 60Klux
Working temperature range: -20~60°C
Storage temperature range: -40~85°C
Eye safety certification: IEC60825 Class 1
Size: 61*33*24mm

Documents

Parts List

MMPT044-940 Pure Solid-State LiDAR x1
Type-c to USB A cable x1
