Solarbotics GM7 120:1 Mini Gear Motor 90 deg. Output

SKU: POLOLU-183

$10.68 AUD, inc GST
$9.71 AUD, exc GST

More Views

Solarbotics GM7 120:1 Mini Gear Motor 90 deg. Output
10.68 AUD

SKU: POLOLU-183

$10.68 AUD, inc GST
$9.71 AUD, exc GST
0 units ship today
Contact us if you need this product urgently
Shipping Offer

Note: Pololu now have a similar, slightly less expensive version of this motor: the Pololu 120:1 mini plastic gearmotor. We also have a version with a 3mm-diameter D-shaft that works with Pololu's large selection of Pololu wheels.

This 120:1 gearmotor (gearbox with brushed DC motor) is very compact and weighs only 0.7 ounces (20 grams) — perfect for building a quick, miniature robot.

This gearmotor starts rotation at 0.58 V, drawing only 46.5 mA at 7 RPM. At 5 V, the gearbox and motor provide 20 oz-in of torque and 145 RPM. The free-running current is 88 mA, and the stall current is 610 mA. The low-current motor is a perfect match for Pololu's qik 2s9v1 dual serial motor controller.

This gearmotor comes pre-assembled, with the gears fully enclosed. A clutch limits the output torque to approximately 25 oz-in (which is produced at 6.5 V, drawing 650 mA) to protect the gearbox and motor. The unit has one mounting hole, and the chrome-finish output shaft is splined with a 0.08" (2 mm)-crest diameter.

A custom plastic wheel is available for this gearmotor, as well as a LEGO wheel adapter that allows it to be used with a variety of LEGO wheels.

For a version of this gearmotor with the output shaft parallel to the motor shaft, see the GM6 gearmotor. For a similar but larger gearmotor, see the GM3 gearmotor (224:1) and the GM9 gearmotor (143:1).

Specifications

  • Description: Mini 90-degree
  • Gear ratio: 120:1
  • 3 V Operation:
    • No-load RPM: ~ 75
    • No-load current: ~ 80 mA
    • Stall current: ~ 310 mA
    • Stall torque: ~ 13.6 oz-in
  • 6 V Operation:
    • No-load RPM: ~ 146
    • No-load current: ~ 92 mA
    • Stall current: ~ 525 mA
    • Stall torque: ~ 23.8 oz-in
  • Weight: 19 g

Solarbotics GM7 gearmotor dimensions (in mm).

You can download a pdf version of this drawing with imperial dimensions (113k pdf) or metric dimensions (113k pdf).

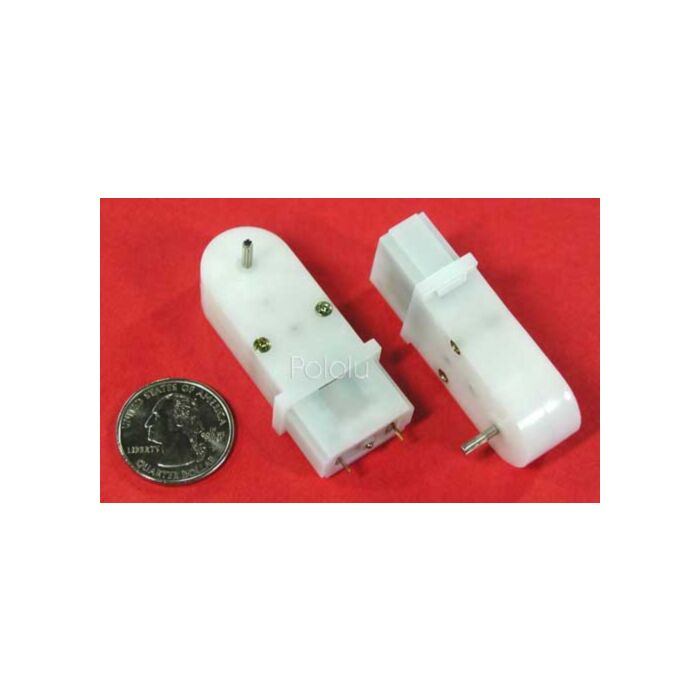

Though the product picture shows two gearmotors, this product is for a single motor.

Documentation and Resources:
