Solarbotics GM6 120:1 Mini Gear Motor Offset Output

SKU: POLOLU-182

$10.68 AUD, inc GST
$9.71 AUD, exc GST

More Views

Solarbotics GM6 120:1 Mini Gear Motor Offset Output
10.68 AUD

SKU: POLOLU-182

$10.68 AUD, inc GST
$9.71 AUD, exc GST
In stock, with a short lead time. 11 units dispatch in 4 to 9 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 28th of Aug with Express Post within Australia.
Shipping Offer

This 120:1 brushed DC gearmotor is very compact and weighs only 0.7 ounces (20 grams) — perfect for building a quick, miniature robot.

This gearmotor starts rotation at 0.58 V, drawing only 46.5 mA at 7 RPM. At 5 V, the gearbox and motor provide 20 oz-in of torque and 145 RPM. The free-running current is 88 mA, and the stall current is 610 mA. The low-current motor is a perfect match for Pololu's qik 2s9v1 dual serial motor controller.

This gearmotor comes pre-assembled, with the gears fully enclosed. A clutch limits the output torque to approximately 25 oz-in (which is produced at 6.5 V, drawing 650 mA) to protect the gearbox and motor. The unit has one mounting hole, and the chrome-finish output shaft is splined with a 0.08" (2 mm)-crest diameter.

A custom plastic wheel is available for this gearmotor, as well as a LEGO wheel adapter that allows it to be used with a variety of LEGO wheels.

For a similar, less expensive version of this gearmotor, see the Pololu 120:1mini plastic gearmotor offset output. For a version of this gearmotor with a 90 degree output shaft, see the GM7 gearmotor. For a similar but larger gearmotor, see the GM2 gearmotor (224:1) and the GM8 gearmotor (143:1).

Specifications

  • Description: Mini offset/inline
  • Gear ratio: 120:1
  • 3 V Operation:
    • No-load RPM: ~ 64
    • No-load current: ~ 64 mA
    • Stall current: ~ 325 mA
    • Stall torque: ~ 13.5 oz-in
  • 6 V Operation:
    • No-load RPM: ~ 157
    • No-load current: ~ 97 mA
    • Stall current: ~ 560 mA
    • Stall torque: ~ 21.1 oz-in
  • Weight: 18 g

Solarbotics GM6 gearmotor dimensions (in mm).

You can download a pdf version of this drawing with imperial dimensions (99k pdf) or metric dimensions (99k pdf).

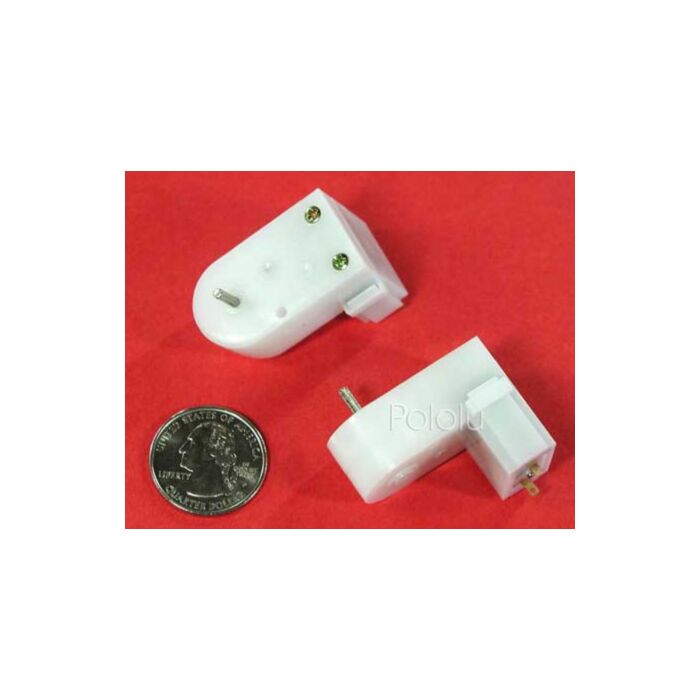

Though the product picture shows two gearmotors, this product is for a single motor.
