smôl Power Board AAA

SKU: SPX-18621 Brand: Sparkfun

Our RedBoards are great. But don't they sometimes seem a little BIG?! Enter smôl, a new range of boards which are both small in size and smal...

$30.70 AUD, inc GST

$27.91 AUD, exc GST

Available with a lead time
Expect dispatch between May 13 and May 16

Quantity Discounts:

10-25 $27.07 (exc GST)
25+ $26.51 (exc GST)

Our RedBoards are great. But don't they sometimes seem a little BIG?!

Enter smôl, a new range of boards which are both small in size and small on current draw. It's a smôl world!

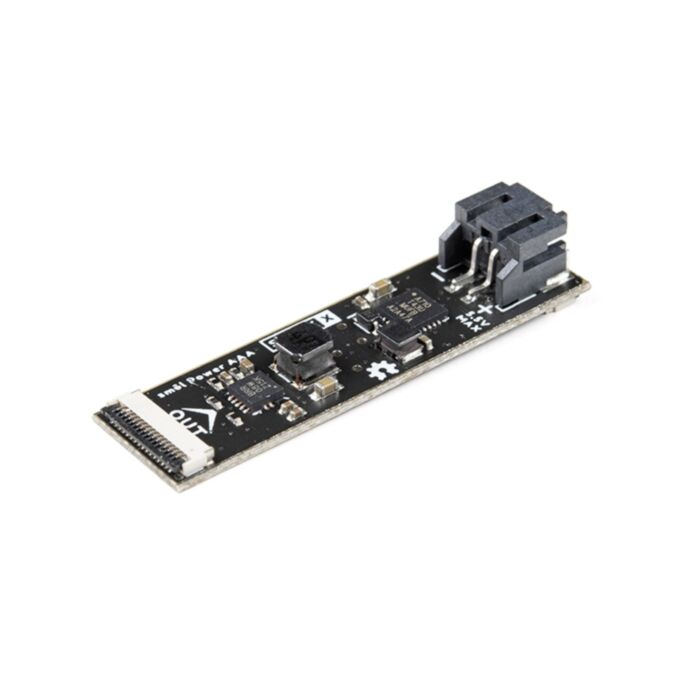

The smôl Power Board AAA is an intelligent power board for the smôl ecosystem. Designed to boost the voltage from one or two AAA or AA cells up to 3.3V, you would expect this board to have a TPS61200 regulator on it, and indeed it does. (That's the same regulator we use on our LiPower - Boost Converter.) But you probably wouldn't expect it to have an AVR ATtiny43 microcontroller on it. So why have we included one?

This is an intelligent power board for smôl. The power board takes control of the 3.3V power for the whole smôl stack. The processor board can then instruct the power board to put the entire smôl stack into deep sleep for a pre-defined interval. Sleep intervals of 10's of milliseconds to several days are possible. In deep sleep, the only device left powered is the ATtiny43 and that reduces the current draw to 12µA. Yes, you read that right, 12 microamps! smôl makes it possible for your battery life to be measured in months not days! Sparkfun used the fantastic Otii Arc Power Analyzer to help us reduce the sleep current as much as possible.

Our smôl Power Board Arduino Library has examples to get you started.

smôl is an ecosystem of miniature processor boards, peripheral boards, power boards and accessories. Designed to be both physically small and to have the smallest possible current draw, smôl is the perfect choice for applications like wildlife tracking or discrete long-term monitoring. smôl boards are designed to stack one on top of the other, using 16-way 0.5mm-pitch Flexible Printed Circuits (FPCs) to provide the interconnect from one board to the next. Looking for a really compact solution for your next project? This is it!

We will be adding new smôl boards over the coming months. Don't see the board you need for your application? Reach out to us via the SparkX Forum and tell us which board(s) we should add next!

Get started with the smôl Hookup Guide

Dig into the specifics with the smôl Power Board AAA Hookup Guide

Note: The smôl Power Board AAA is designed to boost the voltage from one or two AAA or AA non-rechargeable cells up to 3.3V. If you need a rechargeable solution, check out the smôl Power Board LiPo. Note: Please be aware that "ye cannae change the laws of physics"! The current draw from a single cell will be approximately three times what smôl is drawing at 3.3V. When using the smôl ARTIC R2 satellite communication board you are likely to have to use two AA cells for best results. Important note: Please be aware that the smôl Power Board AAA has no reverse-polarity protection. Please be extremely careful that your battery pack and connector have the correct polarity. Experimental Product: SparkX products are rapidly produced to bring you the most cutting edge technology as it becomes available. These products are tested but come with no guarantees. Live technical support is not available for SparkX products. Head on over to our forum for support or to ask a question.

Boost Regulator:

TPS61200
- I_OUT (max) @ V_OUT = 3.3V, V_IN = 1.5V: ~550mA
- I_OUT (max) @ V_OUT = 3.3V, V_IN = 3.0V: ~1500mA
- I_Q: 55µA

On-Board Microcontroller:

ATtiny43U 8-bit AVR Microcontroller
- 4KBytes Flash
- 64Bytes EEPROM
- 256Bytes SRAM
- On-chip Boost Converter (V_IN (min): 0.7V)

Sleep Current Draw:

12µA (with ATtiny43 in Power-Down Mode, V_IN = 3.0V) (measured by Otii Arc)

smôl Specifics:

Interface: I²C
- ATtiny43 Default Address: 0x50
PROC_PWR_EN:
- The power board pulls PROC_PWR_EN low to disable the regulator on the processor board

Dimensions:

Length: 1.60" (40.6mm)
Width: 0.42" (10.7mm)
Height: 0.29" (7.4mm) max.
Weight: 1.6g (0.06oz)
PCB thickness: 0.8mm
