Smart Color Mark Photoelectric Sensor

Skip to the beginning of the images gallery

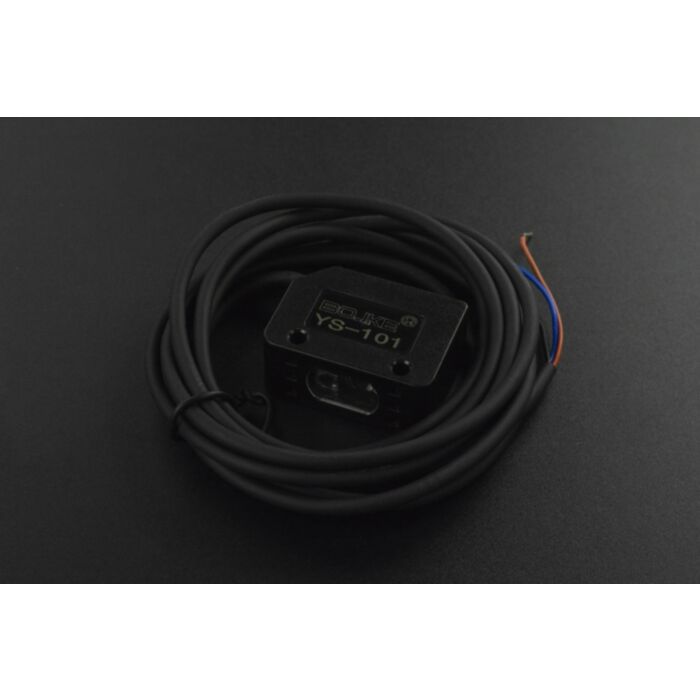

Smart Color Mark Photoelectric Sensor

SKU: SEN0506 Brand: DFRobot

This cost-effective smart color mark photoelectric sensor with 8~16 mm detection range employs 4-elements LED light source, stable detection of a variety...

$83.98 AUD, inc GST

$76.35 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 08 and Apr 14

Introduction

This cost-effective smart color mark photoelectric sensor with8~16 mm detection range employs 4-elements LED light source.

Operating at 12~24V, the color mark sensor offers 3 detection modes,and 4 output modes. It saves color data with one click,which is pretty easy to use.

The sensor provides stabledetection of a variety of colors and its 4-digit LED screendisplays the real-time output color data. Besides, the colorphotoelectric sensor comes with 4 buttons for function settingsand has protection mechanisms like short-circuit protection,overload protection and polarity protection.

Smart Color Mark Photoelectric Sensor

Features

Onboard buttons for function settings, easy to use

Strong light resistance, stable performance

12-24V wide voltage range, multiple protection mechanisms

Specification

Light Source: Four-element LED

Detection Distance: 8~16mm

Power Supply: DC 12-24V

Response Time:

Mode of MARK: 50um;

Mode of C/C1: 130um

Output Selection: LIGHT-ON/DARK-ON [switching select]

Detection Method:

Detection of light intensity MARK

Detection of automatic color matching C

Detection of color and brightness C1

Delay Function:

Turn off delay timer/turn on delay timer/one-shot timer/turn on delay one-shot timer,optionally.

Selectable timer time: 1ms to 9999ms

Operating Ambient Luminance:

Incandescent Lamp: Max 20000Lux

Sunlight: Max 30000Lux

Power Consumption:

Standard mode: Max 300mW@24V

Operating Temperature:-10~55°C

Output Type: NPN

Documents

Product wiki

Parts List

Smart Color Mark Photoelectric Sensor x1
