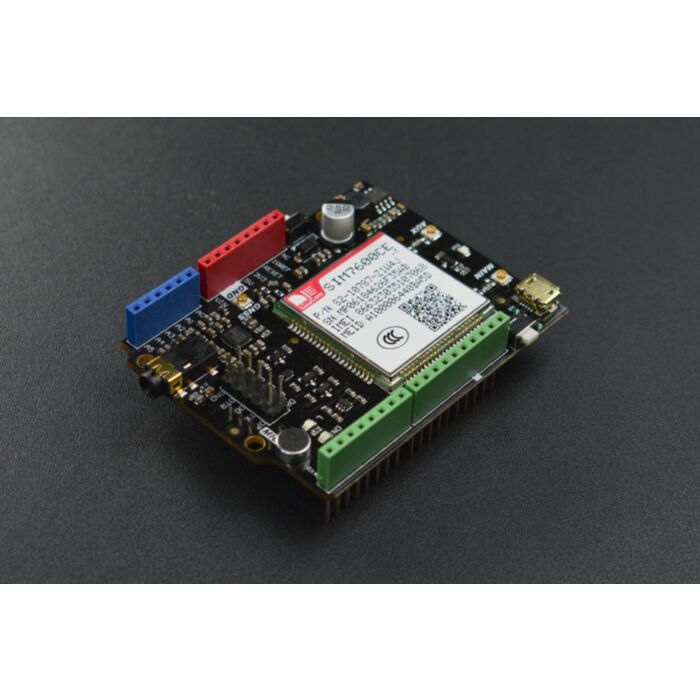

SIM7600CE-T 4G(LTE) Arduino Shield

SKU: TEL0124 Brand: DFRobot

Retired Product

Replaced by: CE04922

This product has been replaced by: CE04922
This product is no longer available. This page is only for reference.

Introduction

SIM7600CE-T 4G(LTE) Shield is a 4G/3G/2G communication and GNSS positioning module.

This shield is as small as a credit card and compatible with controller boards like Arduino UNO, arduino Leonardo, arduino Mega etc. The frequency bands that SIM7600CE-T 4G(LTE) Shield supports are LTE-TDD/ LTE-FDD/HSPA+/TD-SCDMA/EVDO and GSM/GPRS/EDGE. It also supports LTE-CAT4(with uplink rate 50 Mbps and downlink rate 150 Mbps). With stable performance, this small cost-effective expansion shield can realize SMS and data transmission in a pretty low power consumption. Besides, it adopts the latest SIM7600CE module. Compared with other GSM/GPRS/GPS modules on the market, this module is well advanced in stable performance and powerful function such as 4G communication and accurate GNSS positioning.

Features

Support Multi-frequency Communication
GNSS Positioning
Standard Arduino Interface

Specifications

USB Voltage: 5V
Operating Voltage: 5V
Input Voltage: VIN(7-23V)/USB(5V)
Support Network:
TDD-LTE B38/B39/B40/B41
FDD-LTE B1/B3/B8
TD-SCDMA B34/B39
WCDMA/HSDPA/HSPA+ B1/B8
CDMA 1X/EVDO BC0
GSM/GPRS/EDGE 900/1800 MHz
4G Communication Rate: uplink rate 50 Mbps, downlink rate 150 Mbps
Support AT Command Control:
3GPP TS 27.007,27.005 and SIM7500_SIM7600 Series_AT Command
Support GNSS Positioning
Support Low Power Consumption: 20mA@7V-Flight Mode
Support LED Status Display: display the power supply status, network connection and operating mode
Operating Temperature: -40℃ ~85℃
Size: 69*54mm/2.72*2.13inch

Shipping List

SIM7600CE-T 4G(LTE) Shield(V1.0) x1
GPS Antenna x1
4G LTF Antenna x1

Resources

Product Wiki
