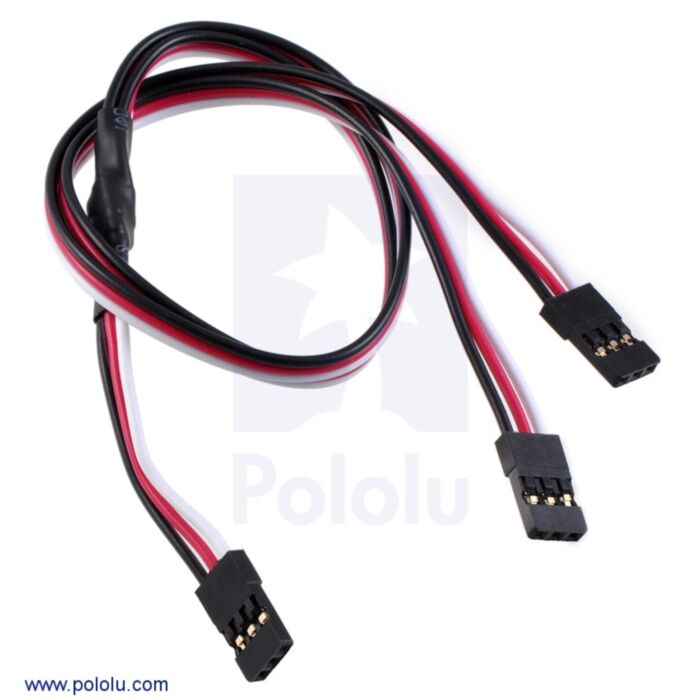

This 12" (300 mm) Y-cable has female JR connectors on all three ends, so it can be used to make connections between devices with 0.1" 3-pin male headers, such as between RC servo controllers or RC receivers and motor controllers with an RC interface. Specifically, it can be very useful in situations where you want to provide the same RC signal to two devices, such as a pair of Simple Motor Controllers working together with signal mixing enabled. The cable’s connectors are commonly found on RC servo leads and work with both male JR and male Futaba J connectors. They have gold-flashed contacts on a 0.1" spacing and are joined by 22-AWG, 60-strand wires that make this cable more flexible than standard servo cables.
The split occurs close to the single (input) end of the cable, allowing the two output ends to achieve a maximum separation of approximately 18" (450 mm).
Note: The cable’s female connectors are the same as what is found on most generic servos and fits nicely with 0.1" male headers, but is often referred to as “male” in the RC hobby industry. The picture below shows the cable connectors labeled with Pololu's gender convention.
|Female “JR”-style connector commonly found on servo cables (often referred to as “male” in the RC hobby industry).|
These female-to-2x-female cables are available in two styles: flat, with wires stuck together side by side, and twisted, with wires twisted around each other to decrease electromagnetic interference (EMI). The twisted versions are especially soft and flexible.
Servo cable color convention
- brown or black = ground (GND, battery negative terminal)
- red = servo power (Vservo, battery positive terminal)
- orange, yellow, white, or blue = servo control signal line
Documentation and Resources:
