Servo-Driven Gear Rack Kit (Dual Gear Rack)

SKU: GB-3207-0001-0002 Brand: goBilda
This rack kit has everything you need to smoothly create some linear motion, driven by the simplicity of a servo
$214.95 AUD, inc GST
$195.41 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 20 and Nov 25

Quantity Discounts:

  • 10-25 $185.64 (exc GST)
  • 25+ $175.87 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

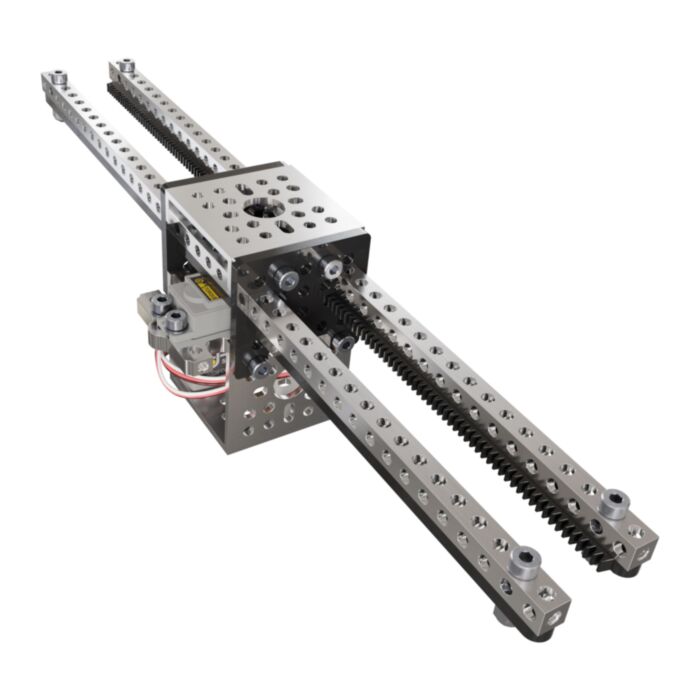

This Servo-Driven Gear Rack Kit creates linear motion using a servo. With an impressive thrust spec that’s almost unbelievable compared to its overall compactness, this kit is a fantastic way to implement back-and-forth motion in your project.

This kit is driven by a 5-Turn Dual Mode Torque Servo that gives the kit its nominal 27kg thrust, 60 mm/sec speed specs. Five other options are available across the Single and Dual Gear Rack families. Both families offer three choices of servos that each provide different thrust and speed specs.

The two gear racks are fastened to Square Beams that provide for a huge variety of attachment options via threaded holes on the goBILDA® 16mm linear pattern. The included U-Channel structure, meanwhile, provides a multitude of mounting possibilities. Aside from utilizing the build-system-wide attachment possibilities of the goBILDA® 16mm square pattern thru holes and 14mm center holes in the kit’s included U-Channel, you can also swap out either or both of the included channel with a same-Series channel length of your choice.

Tools Required:

Kit Contents:

QTY SKU Name
2 1106-0041-0328 1106 Series Square Beam (41 Hole, 328mm Length)
1 1120-0001-0048 1120 Series U-Channel (1 Hole, 48mm Length)
1 1121-0001-0048 1121 Series Low-Side U-Channel (1 Hole, 48mm Length)
1 1133-0001-0001 1133 Series Plastic Flat Grid Bracket (1-1) - 2 Pack
1 1802-0043-0001 1802 Series Servo Frame (43mm Width, for Standard Size Servos)
1 2000-0025-0502 2000 Series 5-Turn, Dual Mode Servo (25-2, Torque)
1 2305-0025-0024 2305 Series Brass, MOD 0.8, Servo Gear (25 Tooth Spline, 24 Tooth)
2 2311-0001-0118 Acetal MOD 0.8 Gear Rack (118 Tooth, 41 Hole)
1 2800-0004-0012 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 12mm Length) - 25 Pack
1 2800-0004-0018 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 18mm Length) - 25 Pack
1 2812-0004-0007 M4 x 0.7mm Nylock Nut (25 Pack)

Downloads

Specs

Weight 305g (10.8oz)
Servo Included 2000-0025-0502
PWM Range to Achieve Full Travel 700 - 2300µsec
Travel per µsec 0.15 mm/µsec
Pulse Amplitude 3-5V
Deadband Width 4µsec
Motor Type Brushed DC
Voltage Range 4.8V~7.4V
No-Load Speed (4.8V) 40 mm/sec (1.57in/sec)
No-Load Speed (6V) 50 mm/sec (1.95 in/sec)
No-Load Speed (7.4V) 60 mm/sec (2.35 in/sec)
Speed at Peak Output Power (4.8V) 20 mm/sec (0.78 in/sec)
Speed at Peak Output Power (6V) 25 mm/sec (0.88 in/sec)
Speed at Peak Output Power (7.4V) 30 mm/sec (1.18 in/sec)
Stall Thrust (4.8V) 18kg (39.6lb)
Stall Thrust (6V) 23kg (50.6lb)
Stall Thrust (7.4V) 26kg (57.2lb)
Thrust at Peak Output Power(4.8V) 9.0kg (19.8lb)
Thrust at Peak Output Power(6V) 11kg (24.2lb)
Thrust at Peak Output Power(7.4V) 13kg (28.6lb)
No-Load Current (4.8V) 190mA
No-Load Current (6V) 200mA
No-Load Current (7.4V) 230mA
Stall Current (4.8V) 2000mA
Stall Current (6V) 2500mA
Stall Current (7.4V) 3000mA
Current at Peak Output Power (4.8V) 1000mA
Current at Peak Output Power (6V) 1250 mA
Current at Peak Output Power (7.4V) 1500mA
