SC-SC Single Mode Duplex Fiber Jumper (2.0 50m)

SKU: TEL0156 Brand: DFRobot

This is a single-mode dual-core fiber jumper with a wire diameter of 2mm and a wire length of 50m. It comes with ceramic ferrule SC-type connectors and a...

$39.95 AUD, inc GST

$36.32 AUD, exc GST

Available with a lead time
Expect dispatch between Jul 24 and Jul 28

Quantity Discounts:

10+ $34.86 (exc GST)
25+ $33.77 (exc GST)

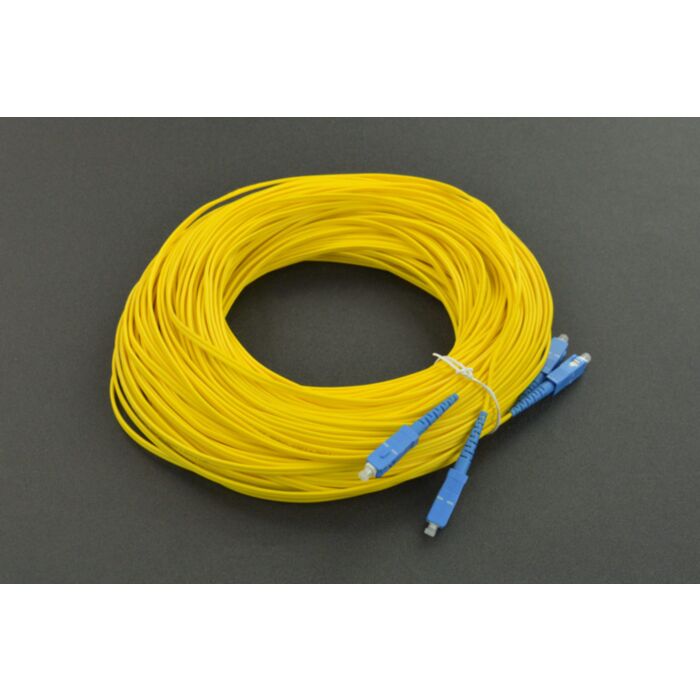

This is a single-mode dual-core fiber jumper with a wire diameter of 2mm and a wire length of 50m. Equipped with ceramic ferrule SC-type connectors and a protective shell, it features low insertion loss, good repeatability, good interchangeability, large return loss, tensile resistance, high performance, and durability. This fiber jumper is more suitable for long-distance optical fiber communication.

The fiber jumper is single-mode which means the fiber enables one type of light mode to be propagated at a time, so it is more suitable for long-distance data transmission. And for the dual-core, it means that there are two single-core fibers.

These optical fiber patch cords can be used in optical fiber communication systems, optical fiber access networks, optical fiber data transmission, and local area networks and other fields.

Features

Low insertion loss

Good repeatability

Good interchangeability

Large return loss

Tensile resistance, high performance, and durability

Applications

Optical fiber communication systems

Optical fiber access networks

Optical fiber data transmission

Local area networks and other fields

Specification

Specifications: single-mode dual-core 9/125 (G652D)

Connector: SC-SC (square)

Wire Diameter: 2.0mm(0.08 inch)

Length: 50m

Ferrule: Ceramic

Wavelength: 1310nm-1550nm

Interchangeability: =0.2dB

Shell Material: PBT

Insertion loss: =0.3dB

Return loss: =50dB

Times of Plugging and Unplugging: > 1000 times

Bending Radius: 30mm

Tensile Strength: 100N

Connector Pull Force: 10-20N

Working Temperature: -40°C ~ +80°C

Industry Standard: Carrier-Grade

Parts List

SC-SC Single Mode Duplex Fiber Jumper(2.0 50m) x1
