Robot Arm Add-on Pack for Makeblock Starter Robot Kit - Blue

SKU: KIT0084-B Brand: Makeblock

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

Introduction

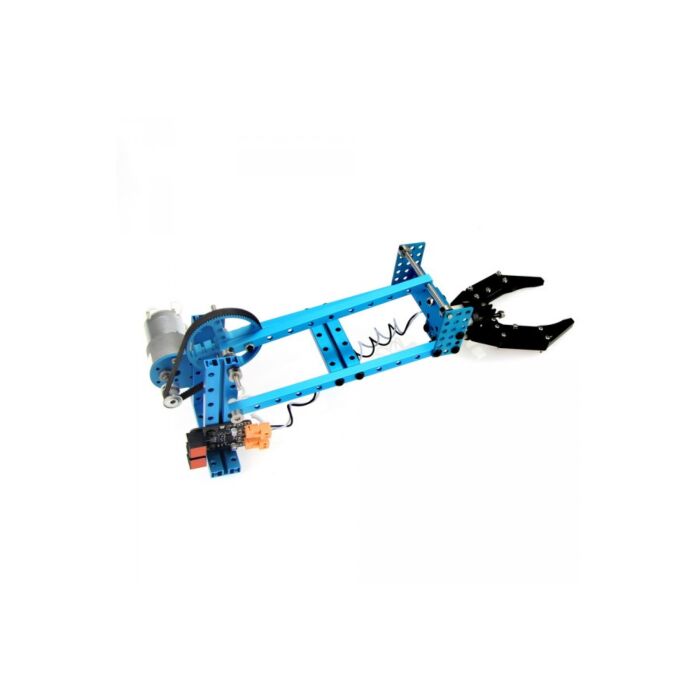

Makeblock Robotic Arm Add-on Pack is a robot pack to expand upon your Makeblock Starter Robot Kit. It contains all the parts to build the robotic arm such as DC Motor-37, Robot Gripper, beams, timing pulleys and hardware.

The robotic arm tank is interesting, nimble, and strong enough. It can be controlled by a IR remote controller , you can use the IR Remote controller to turn the robot in all the directions and pick up a bottle of water in 200ml.

Now, use this pack to build your Robotic Arm Tank!

FEATURES

Expand upon Makeblock Starter Robot Kit to build a Robotic Arm Tank or Robotic Arm Car.
All parts of the robotic arm are included.
Largest open size of robot gripper is 76mm
Motor inside the gripper will stop when it fully open and fully closed

Specification

Marerial: Aluminum,Acrylic board
Largest open size: 76mm
Gripper motor voltage: 12v
Gripper motor operating current: ≤110mA
Gripper motor speed: 600±10%RPM
Arm motor voltage: 12v
Arm motor speed: 50±RPM

Documents

Installation Instructions

SHIPPING LIST

1 x Strong Robot Gripper
1 x Beam 0824-64
1 x Beam 0824-80
3 x Beam 0824-96
3 x Beam 0808-168
1 x Timing Pulley 90T
1 x Timing Pulley18T
1 x Timing Belt 123T
3 x Linear Motion Shaft D4x88mm
8 x Shaft Collar 4mm
6 x Plastic Ring 4x7x2mm
3 x Plate 3x6
1 x Flange Bearing 4x8x3mm
1 x DC Motor-37 Bracket B
12 x Headless Set Screw M3x5
2 x Nylon lock Nut 4mm
4 x Countersunk Screw M3x8
16 x Socket Cap Screw M4x8
14 x Socket Cap Screw M4x14
1 x HEX Screwdriver 2.5mm
6 x Socket Cap Screw M4x22
8 x Nut M4
1 x HEX Allen Key 1.5mm
1 x DC Motor-37 12V/50RPM
1 x Me Dual DC Motor Driver
2 x 6P6C RJ25 cable-20cm
