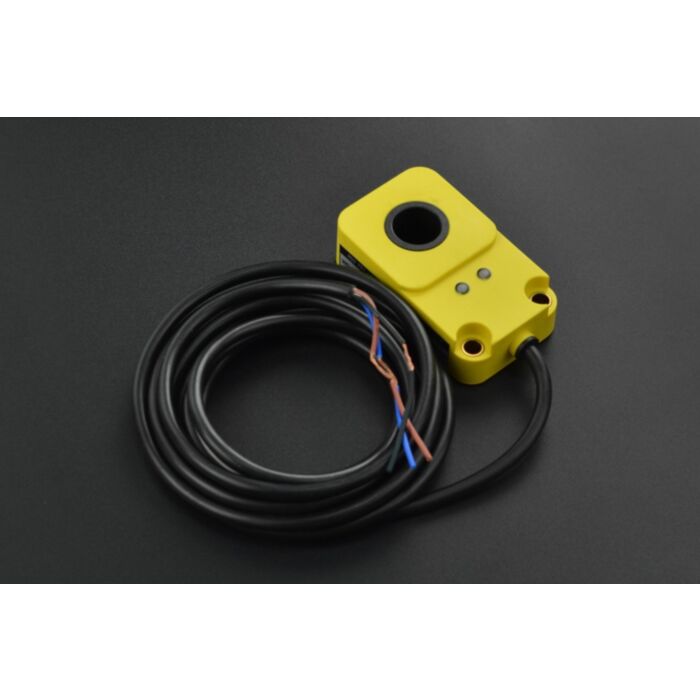

Ring Inductive Proximity Sensor (15mm Hole Diameter)

SKU: FIT0762 Brand: DFRobot

These Inductive Ring Proximity sensors are designed to detect metal object entering or passing through the ring, featuring less than 1ms response time, ...

$32.70 AUD, inc GST

$29.73 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 26 and Dec 02

Quantity Discounts:

10-25 $28.84 (exc GST)
25+ $28.24 (exc GST)

These Inductive Ring Proximity sensors are designed to detect metal objects entering or passing through the ring. They operate on a 6-36V power supply and offer NPN output. The sensor features less than 1ms response time, high accuracy and stable performance, which could work well even in the detection of fast-moving small metal objects. It comes with onboard LED for indicating detection status(light up when metal object detected) and sensitivity adjustment knob(clockwise rotation to increase sensitivity). The sensor is sealed in a rugged and anti-rust house that is made of brass nickel-plated flame-retardant material. Moreover, they support a protection degree of IP66 and can withstand a temperature of -25°C ~ 65°C, which are able to meet your requirements both indoor and outdoor regardless of the weather.

Ring Inductive Proximity Sensor 15mm

They are ideal for sensing small metal parts such as screws, washers, nuts, or monitoring wire breakages and jams.

Specification

Voltage: 6-36V

Hole Diameter: 15mm

Current: 300mA

Detection Distance:10mm

Output: NPN (normally-open)

Detectable Object: metal

Wire Length: about 2m

Sensing Type: inductive

Level Signal: High/Low level

Operating Temperature & Humidity: -25°C ~ 65°C, 35-95%HR

Switch Frequency: 300Hz

Dimension: 68mm*39mm*20mm/2.68*1.54*0.79inch

Parts List

Ring Inductive Proximity Sensor (15mm Hole Diameter) x1
