RF Explorer ISM Combo PLUS - Slim (Seeed Studio)

SKU: SS114991829 Brand: Seeed Studio
RF Explorer ISM COMBO+ is a powerful, high performance digital spectrum analyzer covering the 1GHz frequency range starting at 50KHz, and 2.35GHZ to 2.55GHz for scanning the popular 2.4GHz band.
$449.95 AUD, inc GST
$409.05 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 03

Quantity Discounts:

  • 3-5 $392.68 (exc GST)
  • 5+ $380.41 (exc GST)

Restrictions apply to this RF Equipment for use in Australia:

  • Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz  (check the product description for compatible frequency ranges).
  • If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

  • Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

RF Explorer ISM COMBO+ is a powerful, high performance digital spectrum analyzer covering the 1GHz frequency range starting at 50KHz, and 2.35GHZ to 2.55GHz for scanning the popular 2.4GHz band.

The new SLIM design offers an outstanding robust enclosure, a more convenient USB connector on the side and larger internal battery capacity.

Compared to the baseline ISM COMBO model, the new PLUS includes a higher frequency range in the sub-1GHz band, more sensitivity and higher RF Generator power output in the 2.4GHz band.

Features

  • Internal LNA amplifier and selectable attenuator in the sub-1GHz band.
  • Low frequency support from 50KHz covering LF, MF, HF, VHF and UHF up to 960Mhz
  • High frequency support for 2.4GHz band starting at 2.35GHz and covering up to 2.55GHz.
  • New HELP and SET buttons to improve user interface and configuration selection with 2-clicks
  • Excellent performance to diagnose and generate signals in the 2.4GHz ISM band.
  • Wide band coverage to all popular sub-1Ghz bands, including FM, TV and DTV, ISM, RFID, GSM, etc.
  • Ideal choice for HAM bands from 160meters to 33cm.
  • Pocket size and light weight
  • Solid metal case
  • Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
  • High capacity internal Lithium battery for 20hs+ of continuous run, rechargeable by USB
  • Multi-platform Windows/Linux/MacOS Open Source software and API libraries

Specification

  • Frequency band:
    • Left connector: 0.05 – 960MHz
    • Right connector: 2350 – 2550MHz
  • Frequency span:
    • Left connector: 0.1 – 960MHz
    • Right connector: 2 – 85MHz
  • Internal selectable LNA 25dB gain with the left connector
  • Internal selectable Attenuator 30dB with the left connector
  • Signal generator covering up to +11dBm output power with the right connector.
  • Wifi Analyzer for the 2.4GHz band
  • Graphics LCD 128x64 pixels, great visibility outdoors
  • Support included for Windows, Linux and MacOS X
  • Backlight for great visibility indoor
  • Internal Lithium Ion 1800mA/h rechargeable battery
  • Standard SMA 50 ohms connector
  • Wideband 144/433MHz dual band telescopic antenna included
  • UHF 400-900MHz rubber duck articulated antenna included
  • 2.4GHz whip antenna included
  • Amplitude resolution: 0.5dBm
  • Dynamic range: -125dBm to 10dBm
  • Absolute Max input power: +30dBm
  • Average noise level (typical LNA): -125dBm
  • Frequency stability and accuracy (typical): +-10ppm
  • Amplitude stability and accuracy (typical): +-2dBm
  • Frequency resolution: 1Khz
  • Resolution bandwidth (RBW): automatic 2.6Khz to 600Khz

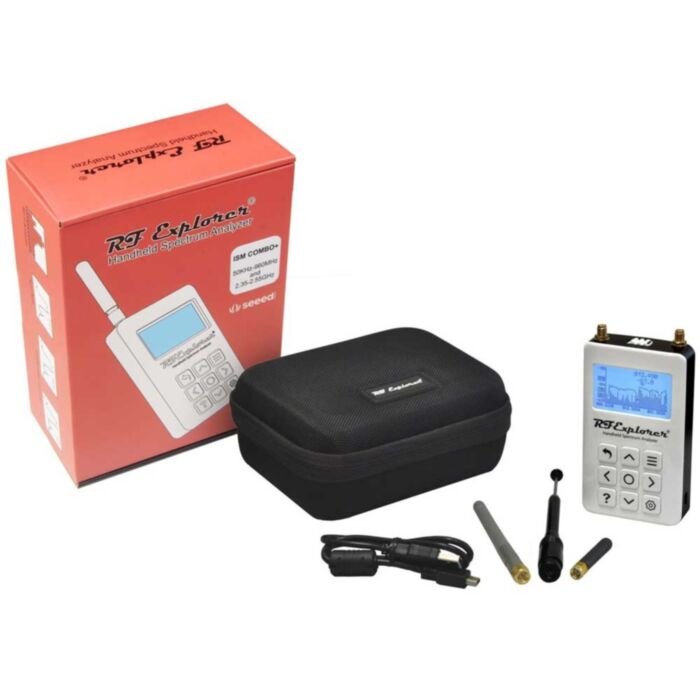

Parts List

  • 1 x Spectrum Analyzer
  • 1 x Mini USB cable
  • 1 x Dual band 144/430MHz Telescopic antenna
  • 1 x UHF 400-900Mhz antenna
  • 1 x 2.4GHz whip antenna
  • 1 x EVA case
