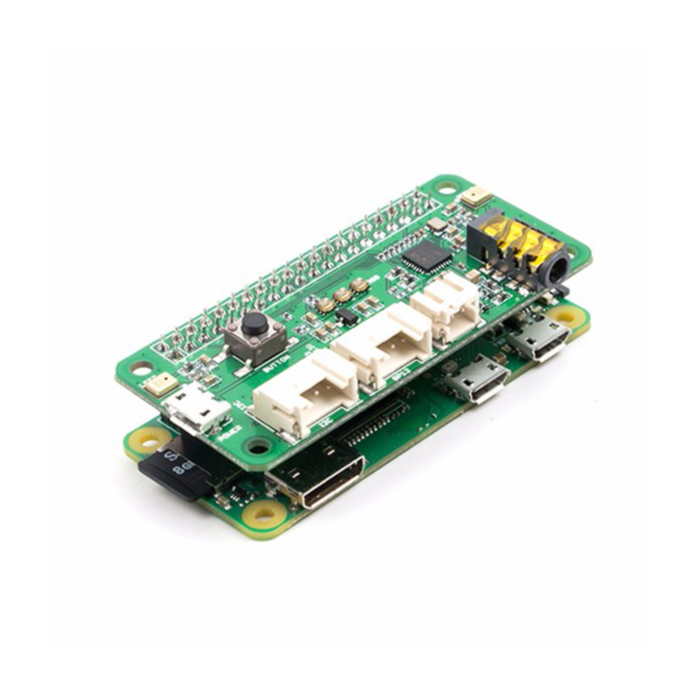

ReSpeaker 2-Mics Pi HAT (Seeed Studio)

SKU: SS107100001 Brand: Seeed Studio

Retired Product

Search for an alternative

This product has been retired. It is no longer available, but this page has been kept for reference.

ReSpeaker 2-Mics Pi HAT is a dual-microphone expansion board for Raspberry Pi designed for AI and voice applications. This means that you can build a more powerful and flexible voice product that integrates Amazon Alexa Voice Service, Google Assistant, and so on.

The board is developed based on WM8960, a low power stereo codec. There are 2 microphones on both sides of the board for collecting sounds and it also provides 3 APA102 RGB LEDs, 1 User Button and 2 on-board Grove interfaces for expanding your applications. What is more, 3.5mm Audio Jack or JST 2.0 Speaker Out are both available for audio output.

Note: This product does not include the Pi Zero board

Features

Raspberry Pi compatible(Support Raspberry Pi Zero, Raspberry Pi 1 B+, Raspberry Pi 2 B and Raspberry Pi 3 B)
Dual-Microphones
2 Grove Interfaces: support GPIO and I2C
Programmable Button and LED: one button and three LEDs
Audio codec onboard
Two types audio output socket : 3.5mm Audio Jack, JST2.0 Speaker Out
Far field support (up to 3 meters)

Usage

1.Get started with Google Assistant

2.How to use button to trigger Google Assistant

Technical Details

Dimensions	65mm x 30mm x 15mm
Weight	G.W 34g N.W 12g
Battery	Exclude

Part List

ReSpeaker 2-Mics Pi HAT
