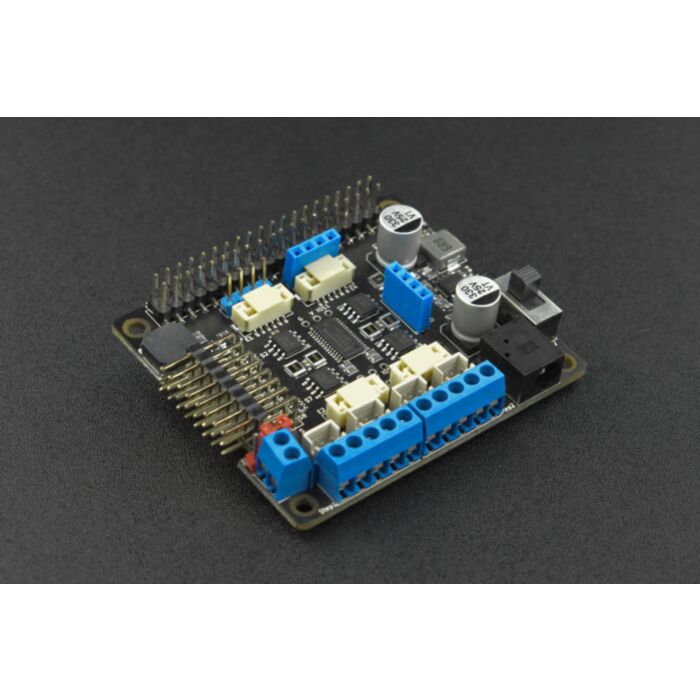

Raspberry Pi Motor Driving Expansion Board (Compatible with Raspberry Pi 4B / 3B+ / 3B / Zero)

SKU: DRI0054 Brand: DFRobot
The fully-featured robot motor expansion board supports multiple motors and servos. Perfect for Raspberry Pi Zero/Zero W/A+/B+/2B/3B/3B+/4B. ...
$49.30 AUD, inc GST
$44.82 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 02 and Jan 06

Quantity Discounts:

  • 10-25 $43.47 (exc GST)
  • 25+ $42.57 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The multifunctional motor driver expansion board is designed for Raspberry Pi Zero/Zero W/A+/B+/2B/3B/3B+/4B. This fully-featured robot motor expansion board is capable of supporting multiple motors,stepper motors, and servos simultaneously.It also provides spare camera and DIP display screen ribbon interfaces and can be used in stack layers to expand more control interfaces.The control interface uses a simple I2C interface,compatible with 3.3V/5V levels, and also includes a UART interface foreasy communication with external devices.Additionally, it features a built-in DC-DC voltage stabilizing circuit, ensuring a stable power supply for Raspberry Piwith a current reach of up to 3A.

This expansion board is particularly suitable for applications such as DIY robots, smart cars, robotic arms, intelligent cloud decks, and more.

Interfaces Diagram of the Raspberry Pi Motor Driver Expansion Board

Figure: Interfaces Diagram of the Raspberry Pi Motor Driver Expansion Board

Features

  • Supports driving 8 servos simultaneously. 3Pin (black, red, blue GVS) standard interface wiring, convenient for connecting servos, servo power can switch to external independent power supply
  • 12-bit resolution, adjustable PWM frequency up to 1.6KHz, configurable push-pull or open-drain output
  • Supports 4-way 6~24V DC motors, PH2.0 interface or screw terminal
  • Suitable for Raspberry Pi Zero/Zero W/A+/B+/2B/3B/3B+/4B
  • Reserved camera and DIP display screen ribbon interface
  • The expansion board reserves 2 IIC expansion interfaces, 1 serial interface
  • Onboard passive buzzer, onboard infrared receiver
  • Applications

  • DIY robots
  • Smart cars
  • Robotic arms
  • Intelligent cloud decks
  • Specification

  • Power supply voltage: 6 ~ 25V
  • Power interface: DC2.1 interface or 3.5mm wiring column
  • PWM servo interface ×8
  • DC motor interface ×4
  • Encoder motor drive interface ×4 6 ~ 25V
  • The IIC address of the driver board is 0x60
  • Documents

  • Product wiki
  • Tutorial
  • Schematic
  • Parts List

  • Raspberry Pi Driving Board × 1
