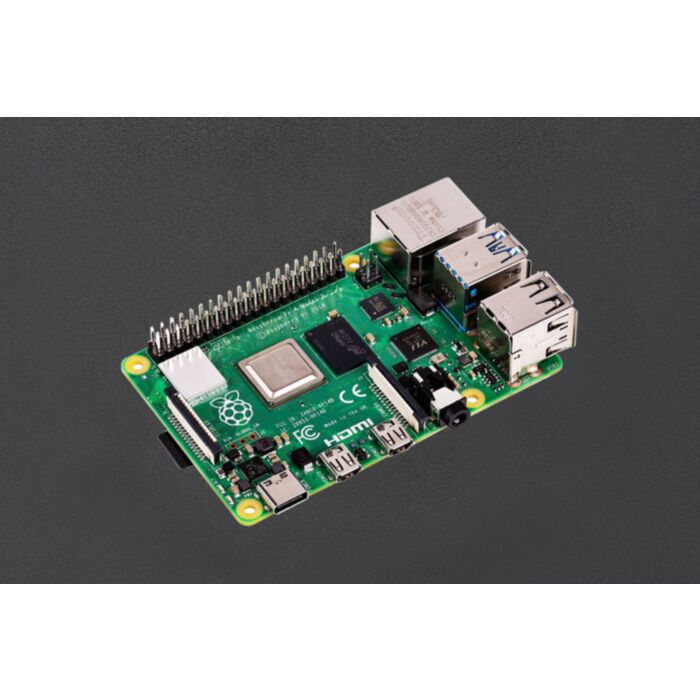

Raspberry Pi 4 Module B-4GB [Pre-order]

SKU: DFR0619 Brand: DFRobot

Retired Product

Replaced by: CE06425

This product has been replaced by: CE06425
This product is no longer available. This page is only for reference.

Introduction

This Raspberry Pi Model 4B-4GB is available to pre-order. Estimated time of delivery: August
Here comes the 4th generation Raspberry Pi model B of popular Raspberry Pi family! Compared to the prior-generation Raspberry Pi 3 Model B+, Pi 4B offers significantly increases in processor speed, multimedia performance, memory, and connectivity. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems, which could let you enjoy smooth and high-quality experience! Raspberry Pi 4B includes a high-performance 64-bit quad-core processor, and features dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, up to 4GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on).

Peripheral Interface

Dimension

WARNINGS

• This product should only be connected to an external power supply rated at 5V/3A DC or 5.1V/ 3A DC minimum1. Any external power supply used with the Raspberry Pi 4 Model B shall comply with relevant regulations and standards applicable in the country of intended use.

• This product should be operated in a well-ventilated environment and, if used inside a case, the case should not be covered.

• This product should be placed on a stable, flat, non-conductive surface in use and should not be contacted by conductive items.

• The connection of incompatible devices to the GPIO connection may affect compliance and result in damage to the unit and invalidate the warranty.

• All peripherals used with this product should comply with relevant standards for the country of use and be marked accordingly to ensure that safety and performance requirements are met. These articles include but are not limited to keyboards, monitors and mice when used in conjunction with the Raspberry Pi.

• Where peripherals are connected that do not include the cable or connector, the cable or connector must offer adequate insulation and operation in order that the relevant performance and safety requirements are met.

SAFETY INSTRUCTIONS

To avoid malfunction or damage to this product please observe the following:

• Do not expose to water, moisture or place on a conductive surface whilst in operation.

• Do not expose it to heat from any source; Raspberry Pi 4 Model B is designed for reliable operation at normal ambient room temperatures.

• Take care whilst handling to avoid mechanical or electrical damage to the printed circuit board and connectors.

• Avoid handling the printed circuit board whilst it is powered and only handle by the edges to minimise the risk of electrostatic discharge damage.

Raspberry Pi 4B vs Raspberry Pi 3B+

Features	Raspberry Pi 4B	Raspberry Pi 3B+
CPU	Broadcom BCM2711 quad-core Cortex-A72 @ 1.5 GHz	Broadcom BCM2837B0 quad-core Cortex-A53 @ 1.4 GHz
Video Output	2x micro HDMI ports	1x HDMI 1.4 port
Max Resolution	4k, 60Hz1080P or 4K, 30Hz	2560×1600
USB	2x USB 3.0 + 2x USB 2.0	4x USB 2.0
4x USB 2.0	Gigabit Ethernet	300 Mbps max
Bluetooth	Bluetooth 5.0 + BLE	Bluetooth 4.2 + BLE
Power Supply	5V via USB type-C up to 3A	5V via micro USB up to 2.5A
Dimension	3.52.3076”/885819.5mm	3.22.30.76”/825619.5mm
Weight	Weight	50g

Specification

Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8)
64-bit SoC @ 1.5GHz
Memory: 1GB, 2GB or 4GB LPDDR4 (depending on model)
Connectivity: 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless LAN,
   Bluetooth 5.0, BLE Gigabit Ethernet
   2 × USB 3.0 ports
   2 × USB 2.0 ports.
GPIO: Standard 40-pin GPIO header
(fully backwards-compatible with previous boards)
Video & Sound: 2 × micro HDMI ports (up to 4Kp60 supported)
   2-lane MIPI DSI display port
   2-lane MIPI CSI camera port
   4-pole stereo audio and composite video port
Multimedia: H.265 (4Kp60 decode);
H.264 (1080p60 decode, 1080p30 encode);
OpenGL ES, 3.0 graphics
SD card support: Micro SD card slot for loading operating system and data storage
Input power: 5V DC via USB-C connector (minimum 3A1)
5V DC via GPIO header (minimum 3A1)
Power over Ethernet (PoE)–enabled (requires separate PoE HAT)
5V 3A Power Input

Documents

Raspberry Pi 4B Tutorial

Raspberry Pi 4B Schematics

Raspberry Pi 4B Mechanical Drawing

Shipping List
