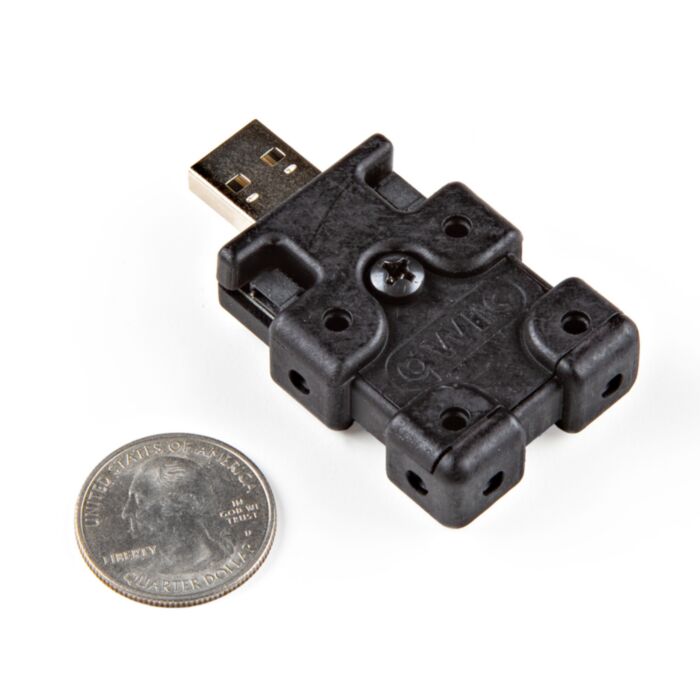

Qwiic USB Development Kit - SAMD21

SKU: SPX-24639 Brand: Sparkfun

A USB development board for the SparkFun Qwiic system...

$47.10 AUD, inc GST

$42.82 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 27 and Jan 30

Quantity Discounts:

10-25 $41.54 (exc GST)
25+ $40.67 (exc GST)

The Qwiic USB Development kit is designed for folks that want to interface a Qwiic device quickly and easily to a computer. The core processor is the SAM21 which allows quick (hah!) and seamless serial printing over USB, as well as easy development and programming using the Arduino environment. The professional printed enclosure makes the device easy to plug/unplug as well as allowing Qwiic boards to be mounted to the enclosure itself.

The development kit features two Qwiic connectors and a user-addressable WS2812 LED. In case you need more IO, there are four GPIO pins, accessible by removing the enclosure, two of which are ADC pins. This little device is not only a great tool for making compact prototypes, but a handy way to add Qwiic sensors to your PC-based projects.

Experimental Product: SparkX products are rapidly produced to bring you the most cutting edge technology as it becomes available. These products are tested but come with no guarantees. Live technical support is not available for SparkX products. Head on over to our forum for support or to ask a question.

Features

ATSAMD21G18 32-bit/48MHz ARM Cortex-M0+
256KB Flash Memory
32KB SRAM
32KB of EEPROM (emulated in Flash)
2x Qwiic Connectors
WS28112 Addressable LED
Plastic Enclosure with Mounting Holes for Qwiic Boards
Male USB-A Connector (like a flash stick)
