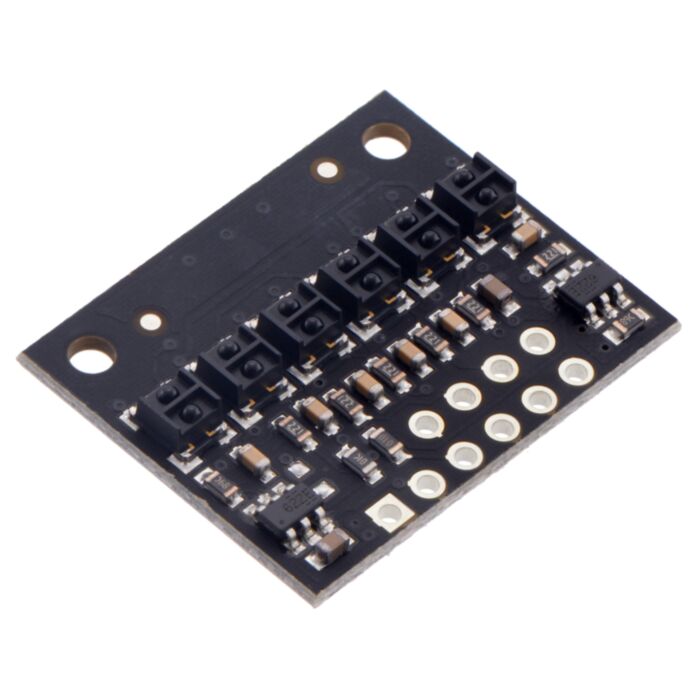

QTRX-HD-06RC Reflectance Sensor Array: 6-Channel, 4mm Pitch, RC Output, Low Current

SKU: POLOLU-4306 Brand: Pololu

This array of IR LED/phototransistor pairs is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to...

$17.45 AUD, inc GST

$15.86 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 09 and Dec 11

Quantity Discounts:

10-25 $15.23 (exc GST)
25+ $14.75 (exc GST)

This reflectance sensor feature a linear array of infrared emitter/phototransistor pair modules in a high-density (4 mm pitch) arrangement, which makes it well suited for applications that require detection of changes in reflectivity. This change in reflectivity can be due to a color change at a fixed distance, such as when sensing a black line on a white background, as well as due to a change in the distance to or presence of an object in front of the sensor.

Specifications

Dimensions: 25.0 × 20.0 × 3.0 mm (see the dimension diagram (1MB pdf) for more details)
Operating voltage: 2.9 V to 5.5 V
Sensor type: QTRX
Sensor count: 6
Sensor pitch: 4 mm
Full-brightness LED current: 3.5 mA (independent of supply voltage)
Max board current: 14 mA
Output format: digital I/O-compatible signals that can be read in parallel as timed high pulses
Optimal sensing distance: 10 mm
Maximum recommended sensing distance: 40 mm
Weight: 1.5 g

Dimensions

Size:	25.0 × 20.0 × 3.0 mm
Weight:	1.5 g

Identifying markings

PCB dev codes:	irs26j¹
Other PCB markings:	0J11382¹

Notes:

1: Note: this does not differentiate between the A and RC output types.

Documents

Pololu QTR Reflectance Sensor Application Note (Printable PDF)
Information about using the Pololu QTR reflectance sensors, including differences between A-type and RC-type sensors and sampleoscilloscope screen captures of sensor outputs.
Schematic diagrams of the QTR/QTRX-HD Reflectance Sensor Arrays (206k pdf)
Dimension diagrams of the QTR/QTRX Reflectance Sensor Arrays (1MB pdf)
3D models (STEP) of the QTR/QTRX Reflectance Sensor Arrays (50MB zip)

This file contains 3D models (in the step file format) of the QTR and QTRX Reflectance Sensor Arrays.
Drill guides (DXF) for the QTR/QTRX Reflectance Sensor Arrays (86k zip)

These DXF drawings show the locations of all of the holes on the QTR and QTRX Reflectance Sensor Arrays.
