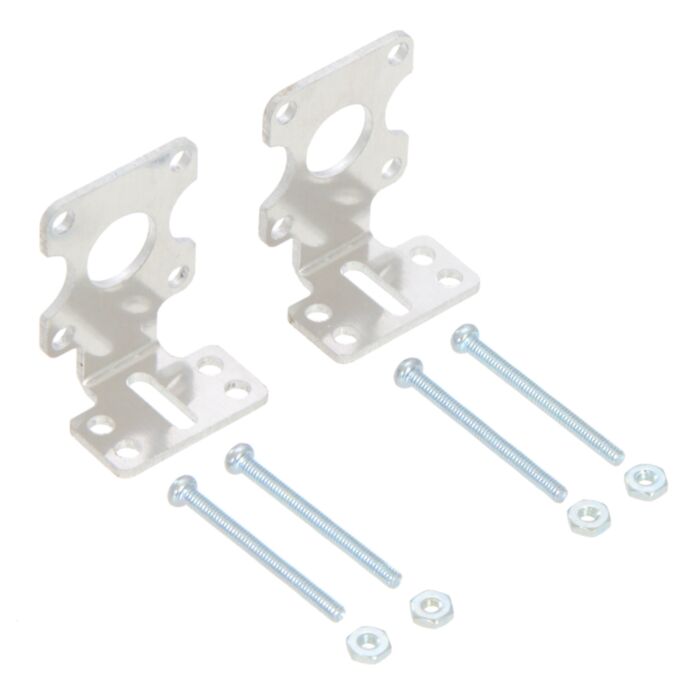

These light-weight brackets (approximately 2.5 g each) are specifically designed for Pololu's larger Pololu plastic gearmotors (228:1 offset, 120:1 offset, 200:1 90-degree, and 120:1 90-degree). Each bracket features four mounting holes and one mounting slot intended for #4-size screws (not included), giving you a variety of mounting options. Pololu also carry a more compact version of this bracket that mounts the motor 0.25" (6.4 mm) closer to the mounting hole surface, though this reduces the number of possible mounting orientations.
A total of four 1" long #2-56 screws and #2-56 hex nuts are included for securing Pololu's 228:1 offset, 120:1 offset, 200:1 90-degree, and 120:1 90-degree plastic gearmotors to the brackets. Only two screws are used to mount a motor to each bracket.
To save space, the bracket can be oriented so that the mounting screws are located between the motor and the surface, and the extra space between the bracket and motor allows for another mounting option in which the surface being mounted to is located between the motor and bracket.
These brackets also work with the Solarbotics plastic gearmotors (GM2, GM3, GM8, and GM9), although different length mounting screws might be required.
The following drawing shows the bracket dimensions in mm.
Mechanical drawing for the Pololu extended stamped aluminum L-bracket for plastic gearmotors. Units are mm over [inches]. |
---|
This drawing is also available as a downloadable PDF (97k pdf).
