These header strips have a 0.1" (2.54 mm) pitch and are commonly used as low-cost connectors. The standard spacing allows use with solderless breadboards, perforated prototyping PCBs, female headers, and Pololu's premium and pre-crimped jumper wires. The single-row header strips can easily be snapped into smaller strips to fit your application. The double- and triple-row strips can also be broken into smaller strips, but it takes a little more effort, and it is sometimes easier to use wire/diagonal cutters.
Details for item #4364
|
|

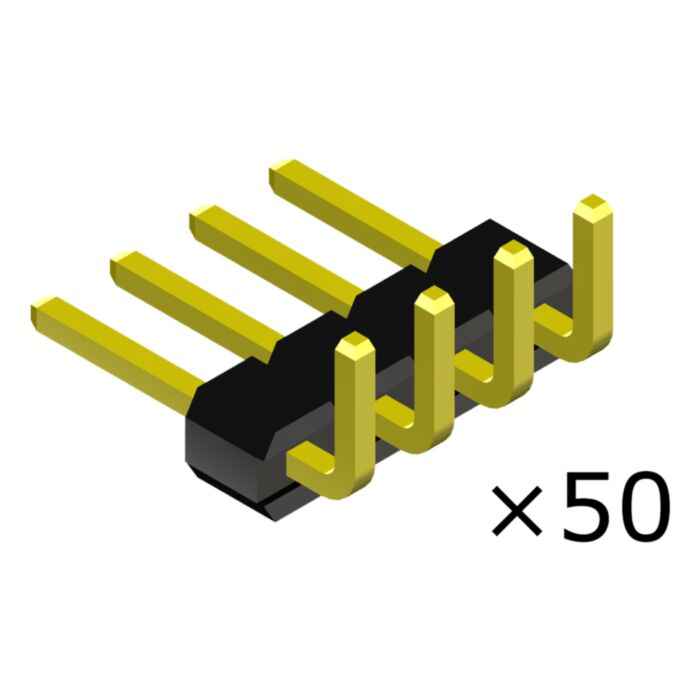

This connector is a 50-pack of 1×4-pin, right-angle male header strips. The strips have a standard-color (black) plastic base.
All available breakaway header options
Straight, Single-Row:
|
Straight | ||||
Item # | Pins | Pack Quantity | Color | |
---|---|---|---|---|
4262 | 1×2 | 100 | black | |
4263 | 1×3 | 100 | ||
4264 | 1×4 | 50 | ||
4265 | 1×5 | 50 | ||
4266 | 1×6 | 50 | ||
4267 | 1×7 | 50 | ||
4268 | 1×8 | 50 | ||
4269 | 1×9 | 25 | ||
4270 | 1×10 | 25 | ||
4271 | 1×11 | 25 | ||
4272 | 1×12 | 25 | ||
4276 | 1×16 | 25 | ||
965 | 1×40 | 1 | ||
2665 | 1×40 | 1 | red | |
2666 | 1×40 | 1 | yellow | |
2667 | 1×40 | 1 | blue | |
2664 | 1×40 | 1 | white |
1×40-Pin, Straight. |
---|
Both sides of this strip are long, allowing for unique connections that cannot be made with standard male header strips. For example, this header can be used as a female-to-male adapter, and both sides are compatible with wire wrap. This version is only available as an individual, 1×40 strip that can be cut or broken into smaller strips.
|
|
Right-Angle, Single-Row:
|
Right-Angle | ||||
Item # | Pins | Pack Quantity | Color | |
---|---|---|---|---|
4362 | 1×2 | 100 | black | |
4363 | 1×3 | 100 | ||
4364 | 1×4 | 50 | ||
4365 | 1×5 | 50 | ||
4366 | 1×6 | 50 | ||
4367 | 1×7 | 50 | ||
4368 | 1×8 | 50 | ||
4369 | 1×9 | 25 | ||
4370 | 1×10 | 25 | ||
4371 | 1×11 | 25 | ||
4372 | 1×12 | 25 | ||
4376 | 1×16 | 25 | ||
965 | 1×40 | 1 |
|
|
Dimensions
Pins: | 1 × 4 |
---|---|
Spacing: | 0.100 in |
General specifications
Gender: | male |
---|---|
Pin type: | right angle |
Current rating: | 3 A |
Color: | black |
Material: | PBT UL94V-0 plastic base, brass pins with gold-flash |
