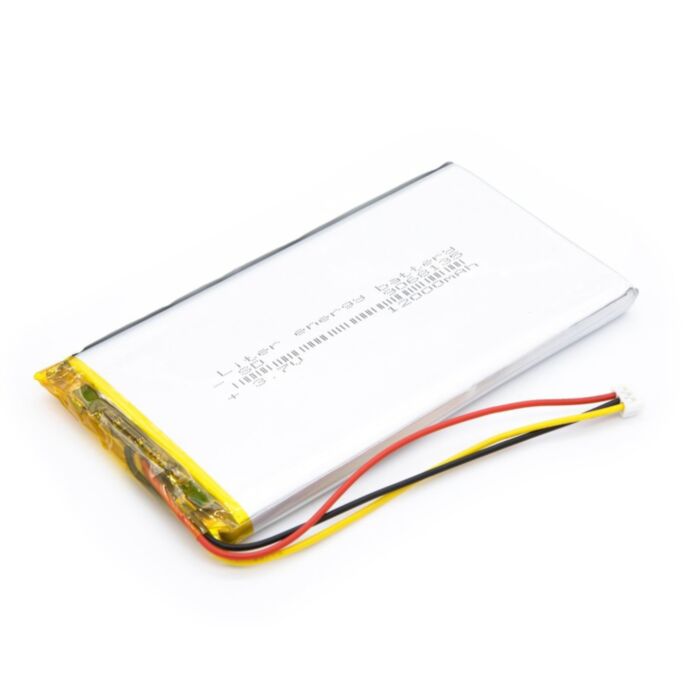

PiJuice LiPo Battery 3.7V 12000mAh 3-Pin

12,000mAh Lithium-Ion battery that can be used with the PiJuice HAT and most other 3-pin LiPo development boards. The PiJuice HAT comes with a 1820mAh as standard, so this 12,000mAh will give you a massive boost! Perfect for remote projects where you want to ensure PiJuice will keep running.

Check out the PiJuice Battery Discharge Calculator to work out roughly how long your battery will last.

Specifications

• Capacity: 12,000mAh
• Dimension: 9mm x 68mm x 135mm
• Onboard NTC Temperature Sensor
• Volts: 3.7
• Type: Li-Polymer
• Weight: 195 grams

Get the 5000mAh battery if the 12000mAh battery is too big.

Use a 6, 12 or 22 Watt solar panel to charge your battery.

Contain it all in the PiJuice Hat and Pi Zero case or see the PiJuice - Tall Case for a model B variant.

Connecting the battery to PiJuice

• View this guide on how to setup & connect your PiJuice battery
