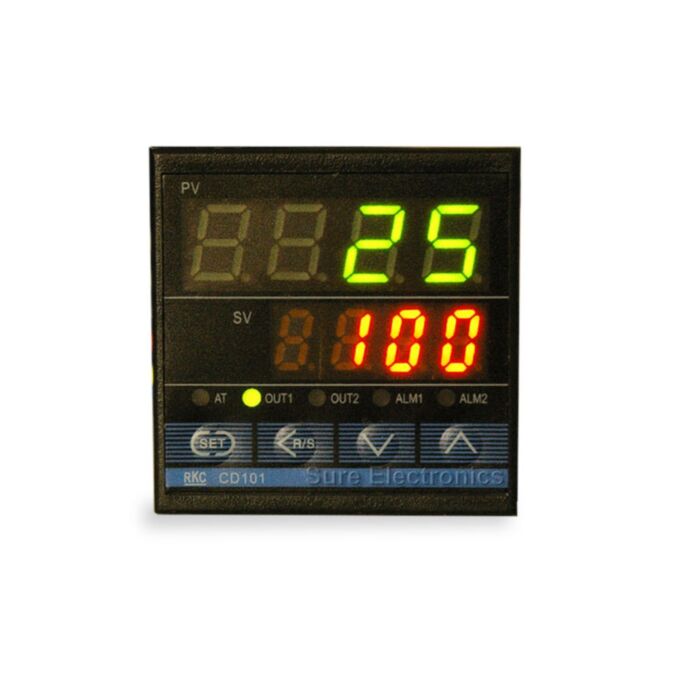

PID Digital Temperature Control Controller F/C CD101(FK02-VM*AN-NN)

SKU: 017-DC-TE11113

$67.09 AUD, inc GST
$60.99 AUD, exc GST

More Views

PID Digital Temperature Control Controller F/C CD101(FK02-VM*AN-NN)

SKU: 017-DC-TE11113

$67.09 AUD, inc GST
$60.99 AUD, exc GST


  • $6.95 Standard (2-4 days, tracked)
  • $9.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This product has been retired and kept here for reference.


  • Size: 48(L) x 48(W) x 110 (H) ±0.2mm
  • Input K type thermocouple (TC)
  • Accuracy Measuring accuracy: ±0.5%FS
  • Cold-end compensation tolerance: ±2℃(can be modified by software in 0~50℃)
  • Resolution: 14 bit
  • Sampling cycle: 0.5 Sec
  • Display Process value (PV), Setting value (SV)
  • Output, alarm and self-tuning can be indicated by: LED

Control method:

  • PIN control (including ON/OFF, step-type PID and continuous PID)
  • Self-tuning control

Controlling output:

  • Relay output: contact capacity 250V AC 3A (resistive load) (Refrigeration)
  • Voltage pulse output: 0/12V (suitable for solid state relay SSR) (Heating-up, a 12V relay needed)
  • Alarm function output: 1 way
  • Contact capacity of output: 250V AC 3A (resistive load)

Setting range:

 Setting value (SV): identical to measuring range (PV)

  • Proportional band (P): 0~full range (ON/OFF control when set to 0)
  • Integral time (I): 0~3600 sec (No integral action when set to 0)
  • Derivative time (D): 0~3600 sec (No derivative action when set to 0)
  • Heat-reset proportional cycle: 1~100 sec
  • Detective temperature range:0 to 400℃


  • Insulation resistance: >50M ohm(500V DC)
  • Insulation resistance: 1500V AC/min
  • Power Consumption: 10 VA
  • Service environment: 0~50℃, environment with no corrosive gas 30~85% RH


  • Only clean the instrument when power off
  • Please use a soft cloth or cotton paper to clean up the stain on the display
  • Do not clean up or touch the display by hard matters in case of any scratch
  • Never use sharp & hard matters such ass screwdrivers or ball pan to touch the buttons on the panel, in case of any scratch or damage.
  • Here is link provided by one of our customers for setting other parameters in "meter parameter mode".
  • http://seattlefoodgeek.com/wp-content/uploads/2010/02/CD-101-Instruction-Manul-including-PV-adjustment.pdf
  • You may read it for details.
  • Package Contents:
    PID Digital Temperature Control Controller F/C X 1
    Thermocouple (K type) X 1
