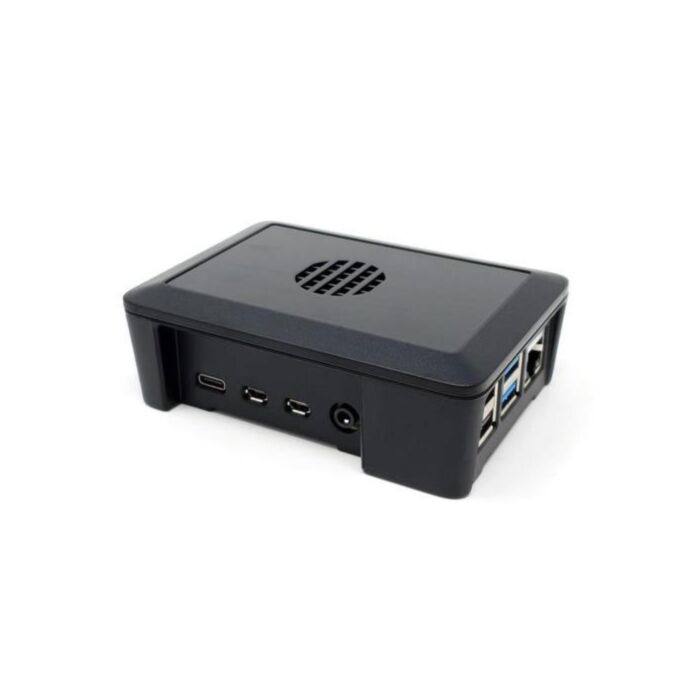

Pi Hut Modular Raspberry Pi 4 Case - Black

SKU: CE07252 Brand: The Pi Hut

Retired Product

Replaced by: Pi 4 Case

This product has been replaced by: Pi 4 Case
This product is no longer available. This page is only for reference.

Introducing Pi Hut's Modular Raspberry Pi 4 Case

This fully customisable case is designed to suit a range of Raspberry Pi applications. It features modular design, allowing enhanced security, functionality and compatibility with additional hardware such as HATs and Vesa mounts.

All Ports Accessible

Upgrade your Raspberry Pi setup with this premium case. It provides easy access to all ports, with light pipes for LED visibility. The case also features dedicated slots for GPIO, CSI, and DSI cables, and a clever SD card holder (with an optional cover for added protection).

Fan Cooling Option

The lid of the case has a fan mounting section, allowing easy installation of one of our 5V GPIO fans. The case can still fit one of our XL heatsinks or heatsink sets, even with a fan fitted.

Stackable Design

The case can grow with your project, thanks to optional spacer layers (available separately) that can be stacked up to 5 spacers high. Additional screws are required for more than 1 spacer, which are also available separately.

Upgrade your Raspberry Pi experience with Pi Hut's customisable modular case.

No. Of Spacers	Screw Length Required
0	28 (Included with Case)
1	38
2	48
3	58
4	68
5	78

Please note: Due to the lid's fan mounting points, spacers will be required to fit most HATs.

Large rubber feet are also included with the case to ensure your project is sturdy and rattle-free.

Features

Raspberry Pi 4 two-part (lid & base) plastic case
LED Status Light Pipes
Pi is fixed to the case with screws for a secure fitting
Secure case locking via screws (included)
Airflow - Internal volume perfect for adding heat sinks
GPIO 40-pin ribbon cable slot
Combined CSI camera cable and DSI video cable slot
Internal SD Card Holder
Streamlined looks
Dedicated wall mounting points
Matt finish body with gloss lid
Available in black and clear
Designed in the UK
Strong & Durable ABS Plastic

Case Dimensions

Length: 104.95mm
Width: 74.95mm
Height: 36.00mm

In the Box:

1x Modular Pi 4 Case
4x Pi Mounting Screws
4x Case lid screws
4x Adhesive rubber feet

Modular Add-On Options Include the Following:

Micro SD Card Cover

Flush, lockable and tamper-proof
Secure your micro-SD card from probing fingers
Protect your micro-SD card from accidental knocks & bangs

10mm Stackable Spacers

Allows your case to be used with HATs
Spacers raise the internal height by 10mm
Can be stacked to increase internal height by up to 50mm (5 spacers)
Great for embedded applications and hobbyist projects

VESA Mounts

Two Types Available Depending on VESA Spacing
VESA Splash Enables the use of MIS-D 75/100 M4
VESA Slice Enables the use of MIS-F 200mm M6
Great for media & signage applications e.g. hiding the Pi behind a monitor or TV

Spacer plates are designed to be stacked up to 5 spacers high, so you can grow your Pi case with your project! Additional Screws are Required for more than 1 Spacer.
