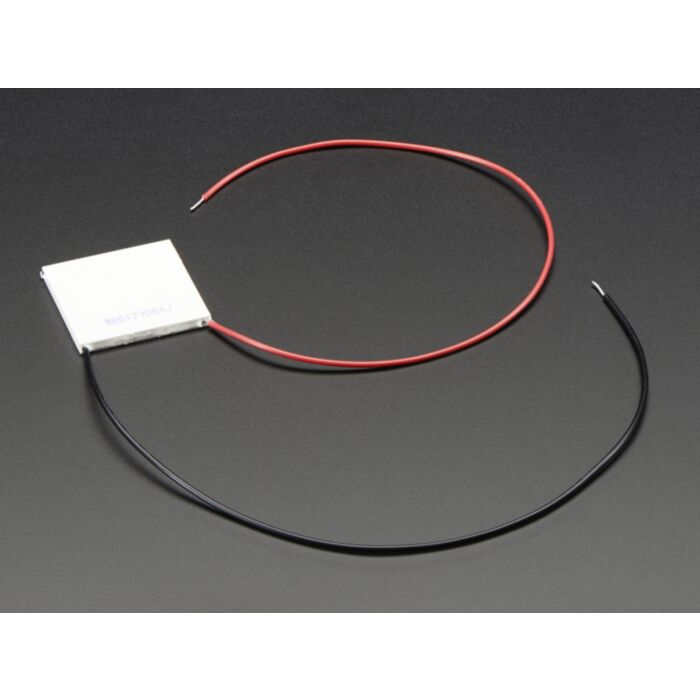

Peltier Thermo-Electric Cooler Module - 12V 5A

SKU: ADA1330

$20.95 AUD, inc GST
$19.05 AUD, exc GST

More Views

Peltier Thermo-Electric Cooler Module - 12V 5A
20.95 AUD

SKU: ADA1330

$20.95 AUD, inc GST
$19.05 AUD, exc GST
Shipping Offer

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Keep it cool with a Peltier module. These unique electronic components can generate a temperature differential when powered. That is to say, apply 12V to the red (positive) and black (negative) wires and one side will get cold while the other side gets hot. For best results, you'll need to wick away that heat (otherwise the cold side will slowly get warmer). A fan and/or heatsink is ideal.

This module is a 12V module, and is rated for ~72W max (up to 14V/6A) but when used with a regulated 12V output they don't draw more than 5A so they suggest Adafruit's 12V/5A power adapter for use.

Peltier Thermo-Electric Cooler Module - 12V 5A (5:20)

Technical Details

  • Max current: 6A @ 12V
  • Suggested Voltage range: 12V to 15.5V
  • Maximum temperature differential (Tmax @ Qc = 0): 66°C
  • Maximum cooling power (Qcmax) @ 15.3V: 97W
  • 127 Peltier elements
  • DC Resistance: 2.5 ohms
  • Silicone seal
  • Dimensions: 40mm / 1.57" x 40mm / 1.57" x 3.5mm / 0.13"
  • Wire Length: 339.72mm / 13.32"
  • Weight: 20.68g
