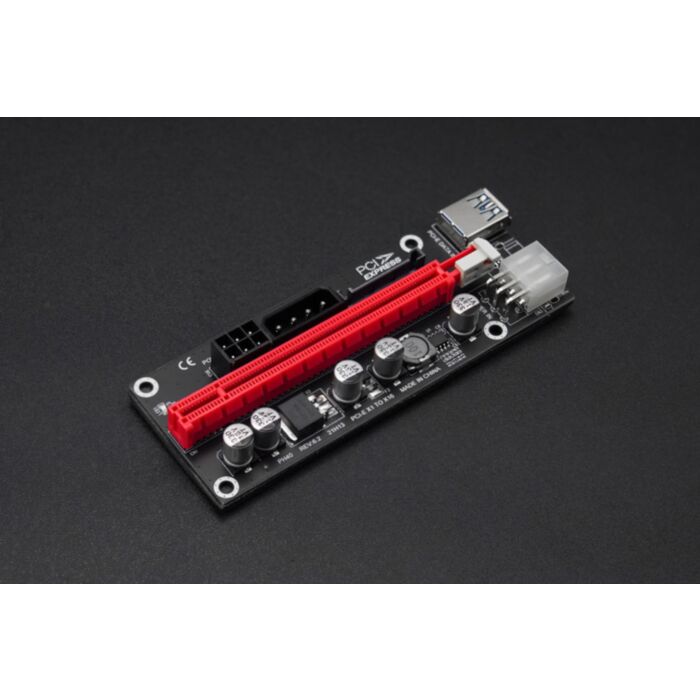

PCIex1 to PCIex16 Graphics Card Extension Board (Compatible with LattePanda Sigma)

SKU: FIT0972 Brand: DFRobot
The PCIex1 to PCIex16 graphics card Adapter Card features a PCIex16 card slot and high-speed transmission. Offers plug-and-play convenience...
Special Price $11.30 AUD, inc GST
Regular Price $14.53 AUD, inc GST
$10.27 AUD, exc GST
Special pricing ends 05 August 2024
* this special may end earlier than shown

Available with a lead time
Expect dispatch between May 17 and May 20

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a PCIex1 to PCIex16 adapter board specially prepared for LattePanda Sigma users.It has a PCIex16 card slot. No driver installation is required, just plug and play.It can be used with the M.2 M Key to PCIex4 expansion card to connect multiple external graphics cards or PCIe devices to the Sigma motherboardto maximize the performance of Sigma.

Interfaces Diagram of PCIex1 to PCIex16 Expansion board

Interfaces Diagram of PCIex1 to PCIex16 Expansion board

In addition, the adapter card is also equipped with a 15-pin SATA to 6-pin GPU power cable and USB3.0 data cable, which eliminates the trouble of additional wiring and is more convenient to use.

Parts List of PCIex1 to PCIex16 Expansion board

Parts List of PCIex1 to PCIex16 Expansion board

Note: The USB interface of the adapter card transmits PCIe signals, not an ordinary USB interface!It must be used with an M.2 M Key to PCIex4 Expansion Board to connect an external PCIe device.

Wiring Diagram of PCIex1 to PCIex16 Expansion board and LattePanda Sigma

Wiring Diagram of PCIex1 to PCIex16 Expansion board and LattePanda Sigma

Features

  • High-quality PCIeX16 card slot
  • 3 types of power supply interfaces
  • Comes with USB cable and power supply cable, easy to use
  • Specification

  • Number of extensions: PCIex16
  • Compatible systems: Windows/Linux/Mac os
  • USB data cable length: 60cm
  • Documents

  • Product wiki
  • Parts List

  • PCIex1 to PCIex16 Expansion Card x1
  • USB data cable x1
  • 15Pin SATA to 6pin GPU power cable x1
  • PCIe test board x1
